Front Side Marker Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Partially peel off the mud guard.
Remove in the order indicated in the illustration.
Install in the reverse order of removal.

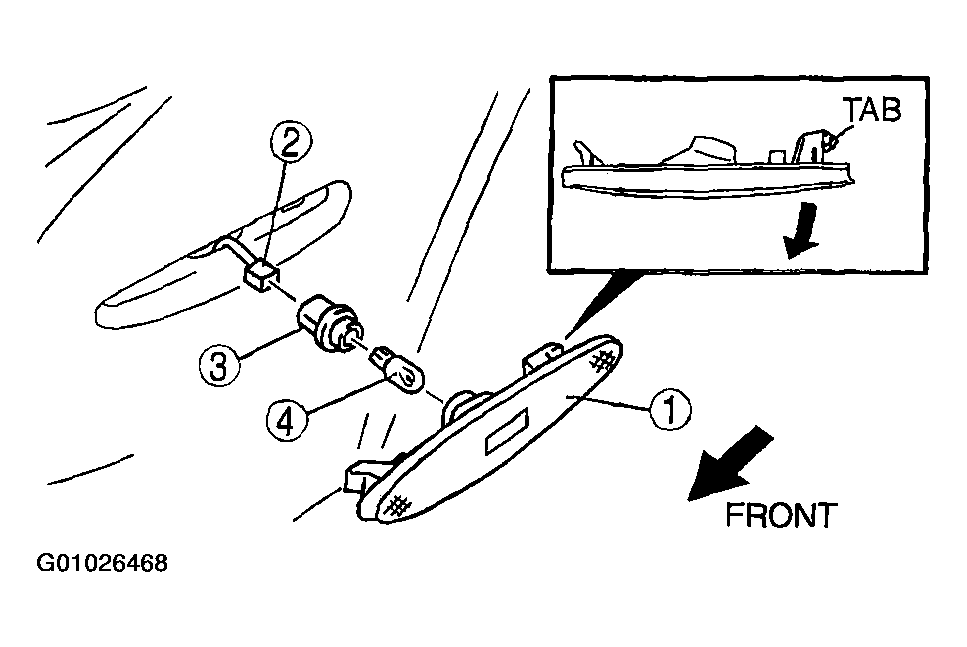

Fig 1: Removal Order Of Front Side Marker Light

Courtesy of MAZDA MOTORS CORP.

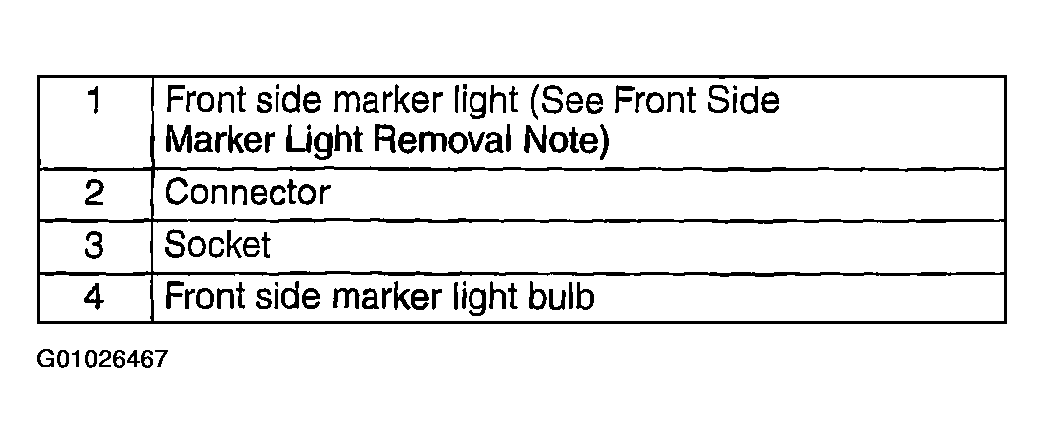

Fig 2: Removing/Installing Front Side Marker Light

Courtesy of MAZDA MOTORS CORP.
