Interior Lighting System Location Index

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

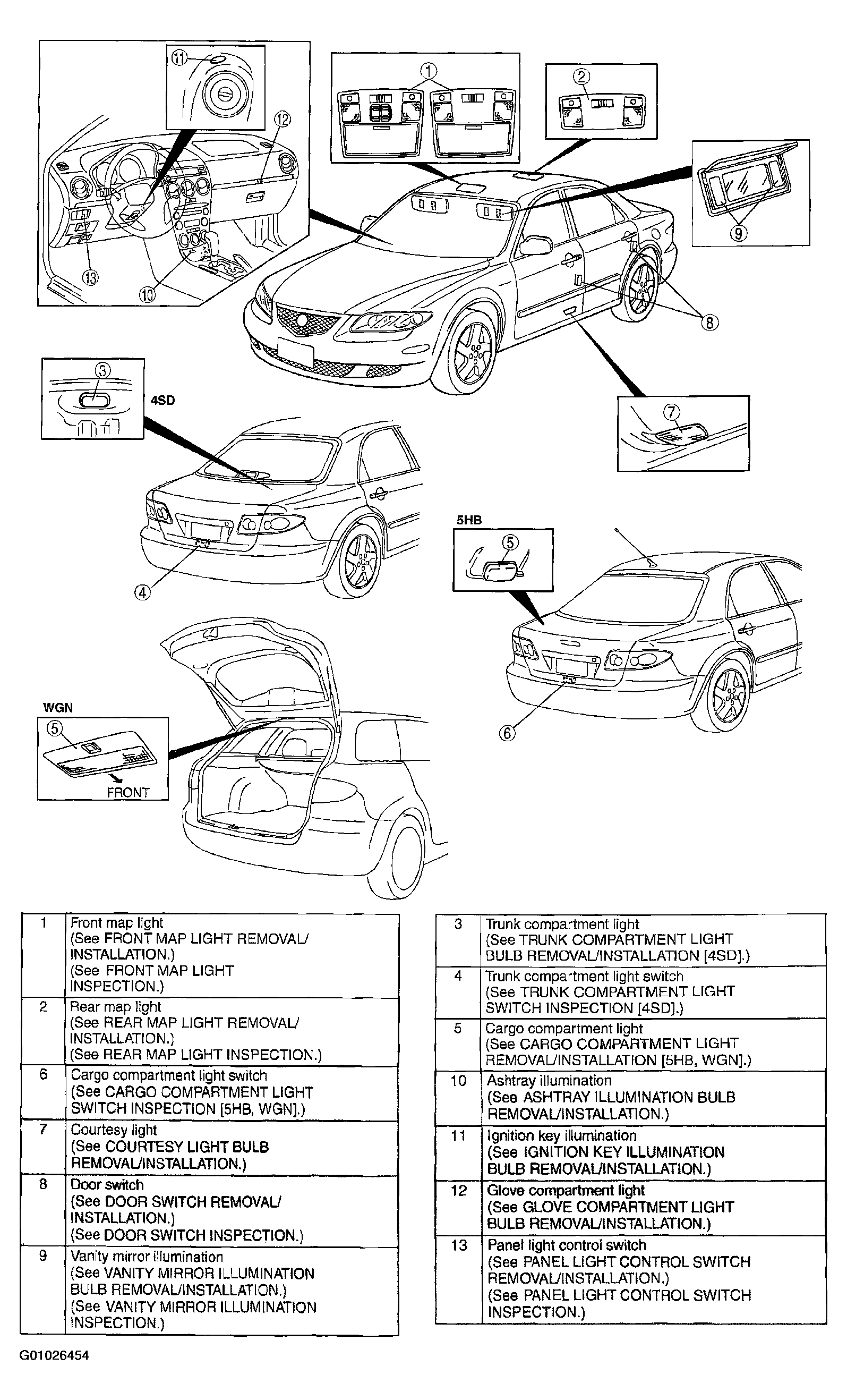

Fig 1: Interior Lighting System Location Index
G01026454Courtesy of MAZDA MOTORS CORP.
