Specification (Unloaded Condition)

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Standard Suspension

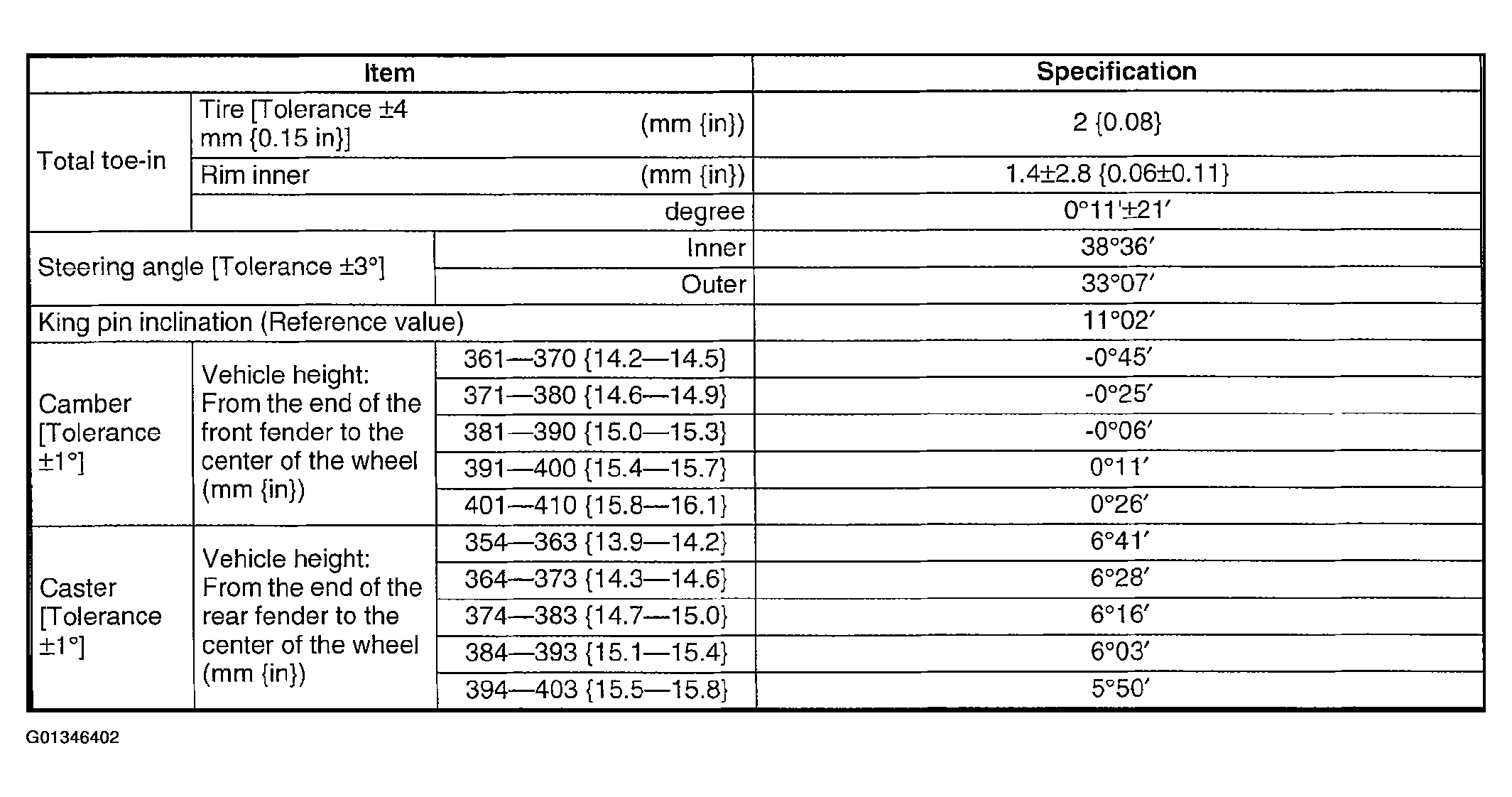

Fig 1: Front Wheel Alignment Specifications (Standard Suspension - Unloaded Condition)

Courtesy of MAZDA MOTORS CORP.

Sport Suspension

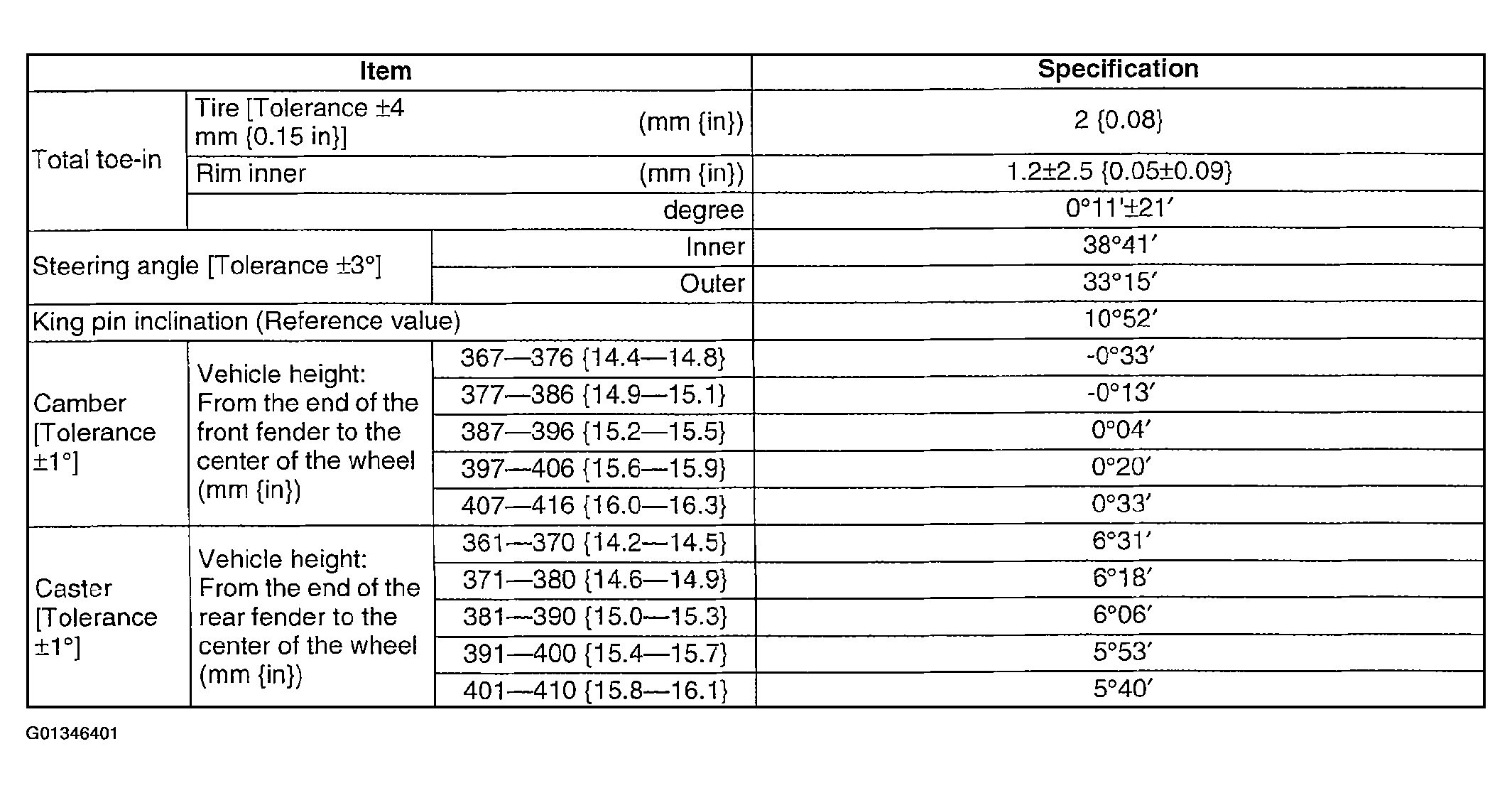

Fig 2: Sport Suspension Specifications (Front Wheel)

Courtesy of MAZDA MOTORS CORP.

NOTE:

Unloaded vehicle: Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
Difference between the left and right dimension for camber and caster is within 1°.
