Coil Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Do not remove the coil unless you are replacing it.
When only the coil is replaced, the immobilizer system reprogram procedure is not necessary.

Disconnect the negative battery cable.
Remove the column cover.
Remove in the order indicated in the table.

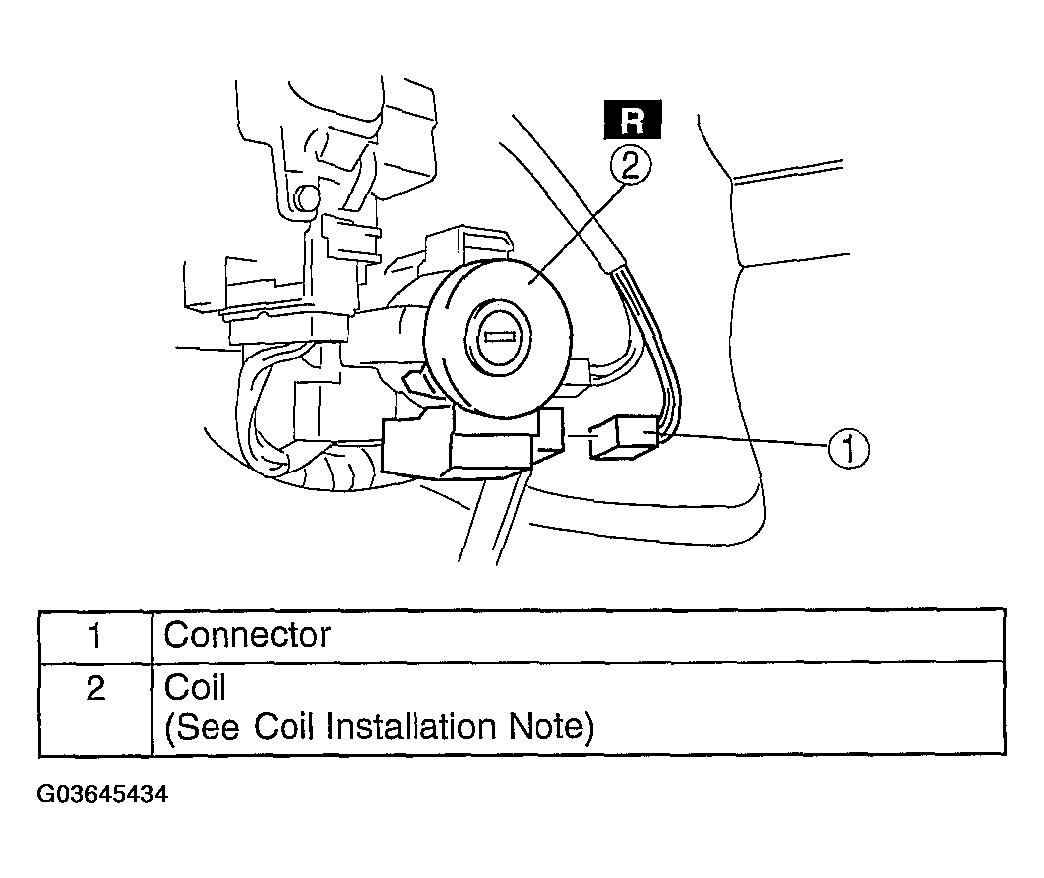

Fig 1: Coil Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
