Door Lock Switch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the inner handle cover. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the screws, then remove the door lock switch.

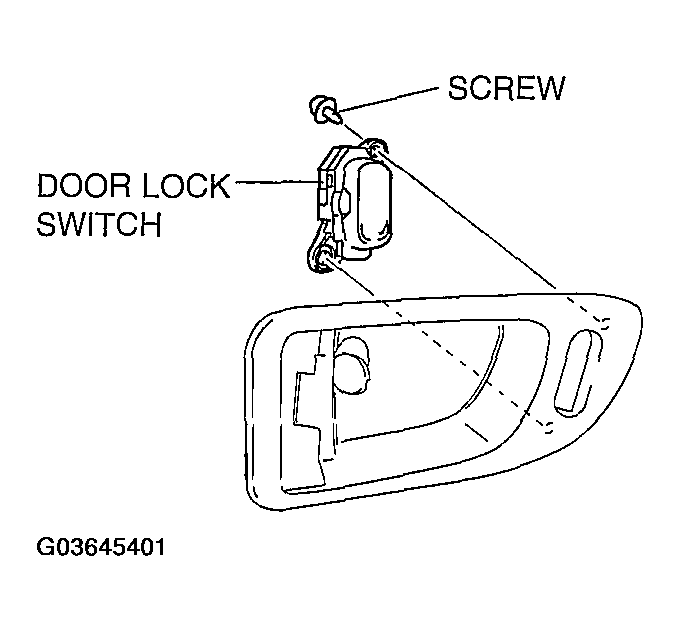

    Fig 1: Removing Door Lock Switch And Screws
    G03645401Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
