Trunk Lid Open Cancel Switch Removal/Installation [Sedan]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the glove compartment.
  3. Squeeze the tabs of the trunk lid open cancel switch and pull it forward to remove it.

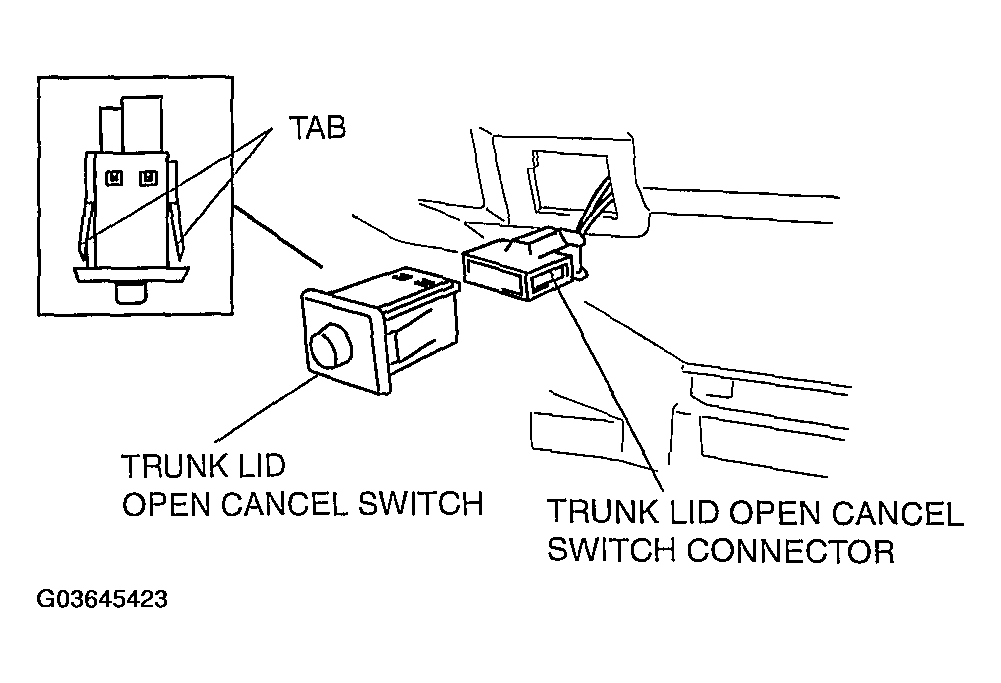

    Fig 1: Removing Trunk Lid Open Cancel Switch
    G03645423Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the trunk lid open cancel switch connector.
  5. Remove the trunk lid open cancel switch.
  6. Install in the reverse order of removal.
