Trunk Lid Opener Switch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Using a small flathead screwdriver, detach the tabs of the trunk lid opener switch from the dashboard.
  3. Push the trunk lid opener switch into the dashboard and remove.
  4. Disconnect the trunk lid opener switch connector.
  5. Install in the reverse order of removal.

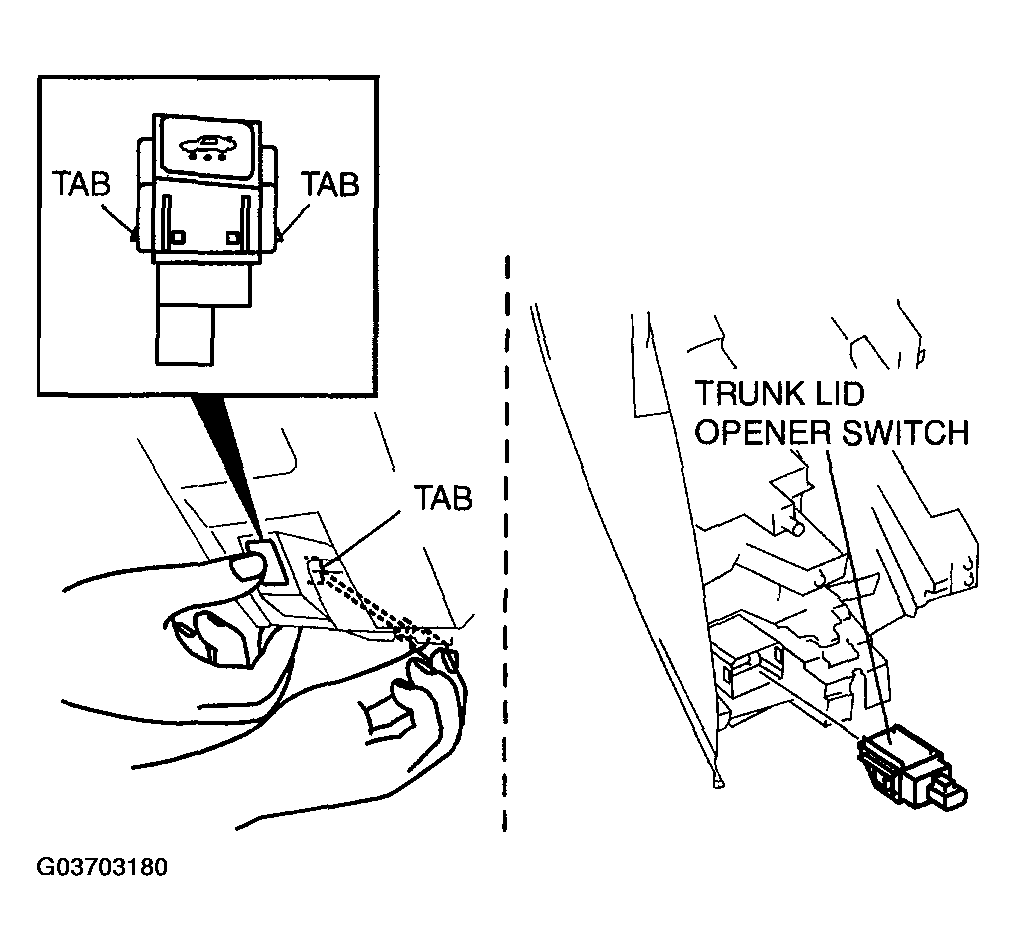

    Fig 1: Disconnecting Trunk Lid Opener Switch Connector
    G03703180Courtesy of MAZDA MOTORS CORP.
