Cam Ring Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cam ring with the identification mark facing downward.

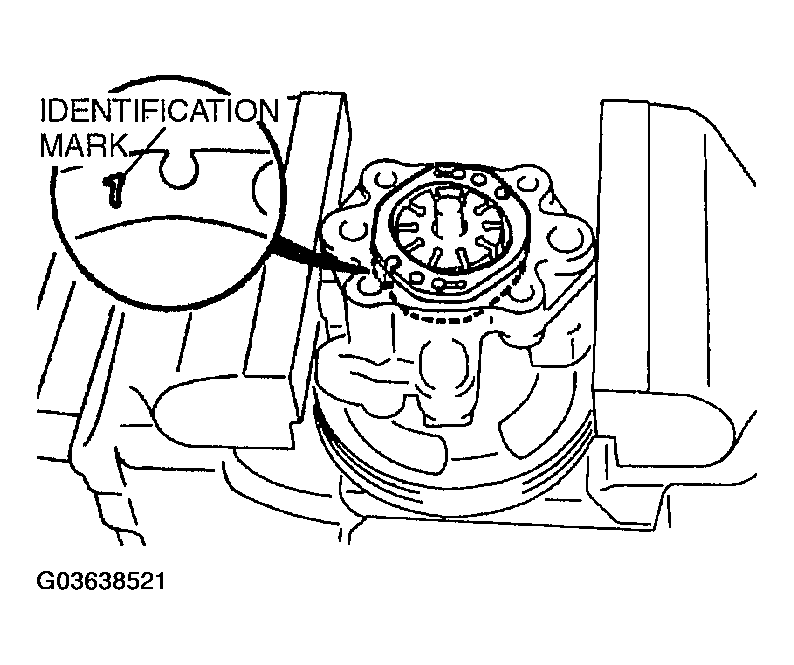

    Fig 1: Installing Cam Ring With Identification Mark Facing Downward
    G03638521Courtesy of MAZDA MOTORS CORP.
