Power Steering Oil Pump Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- The following procedure is for replacement of the O-rings only. Replace the pump component if other repairs are necessary.

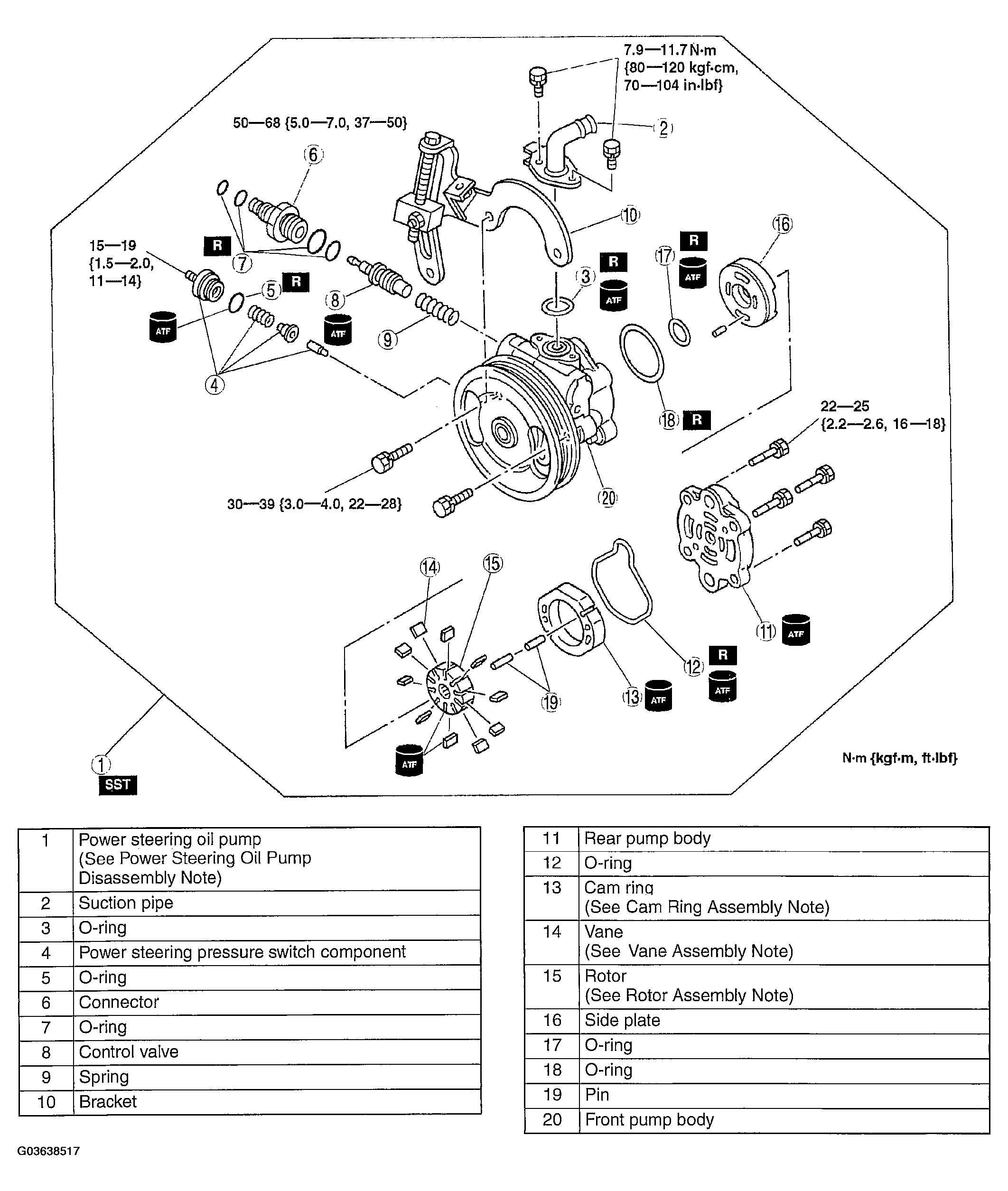

- Disassemble in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- Assemble in the reverse order of disassembly.
