Holder Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Apply grease to the U-gasket and O-ring.
Assemble the U-gasket and O-ring into the holder.
Assemble the holder using the SST .

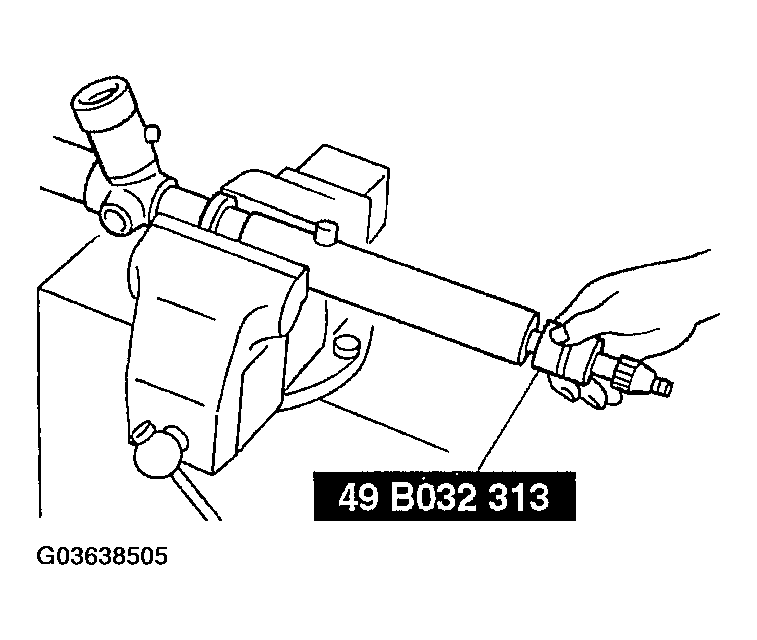

Fig 1: Assembling Holder
Courtesy of MAZDA MOTORS CORP.
Stake the holder to the cylinder using a punch.

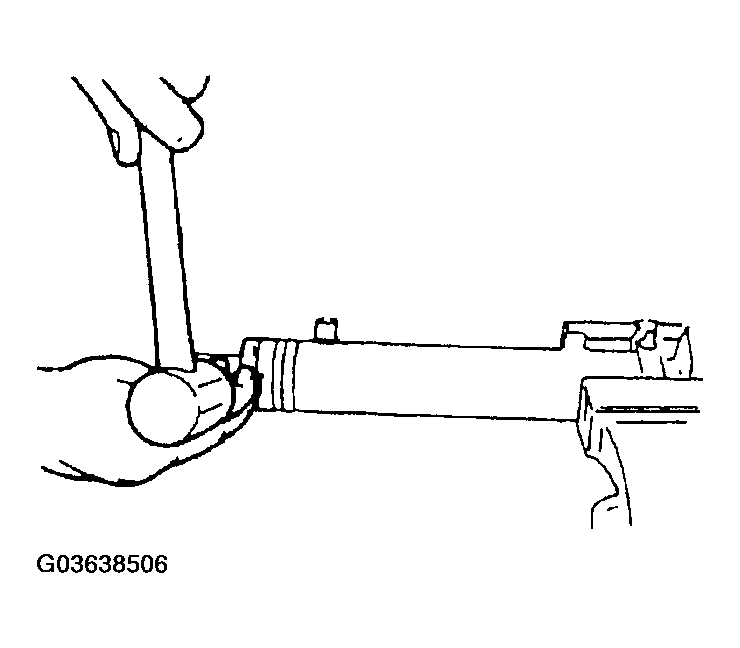

Fig 2: Staking Holder To Cylinder Using A Punch
Courtesy of MAZDA MOTORS CORP.
