Mounting Rubber Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Apply soapy water to the rubber part of the mounting rubber.
Press the mounting rubber until the mounting rubber end comes out completely from the gear housing using the SSTs and a press.

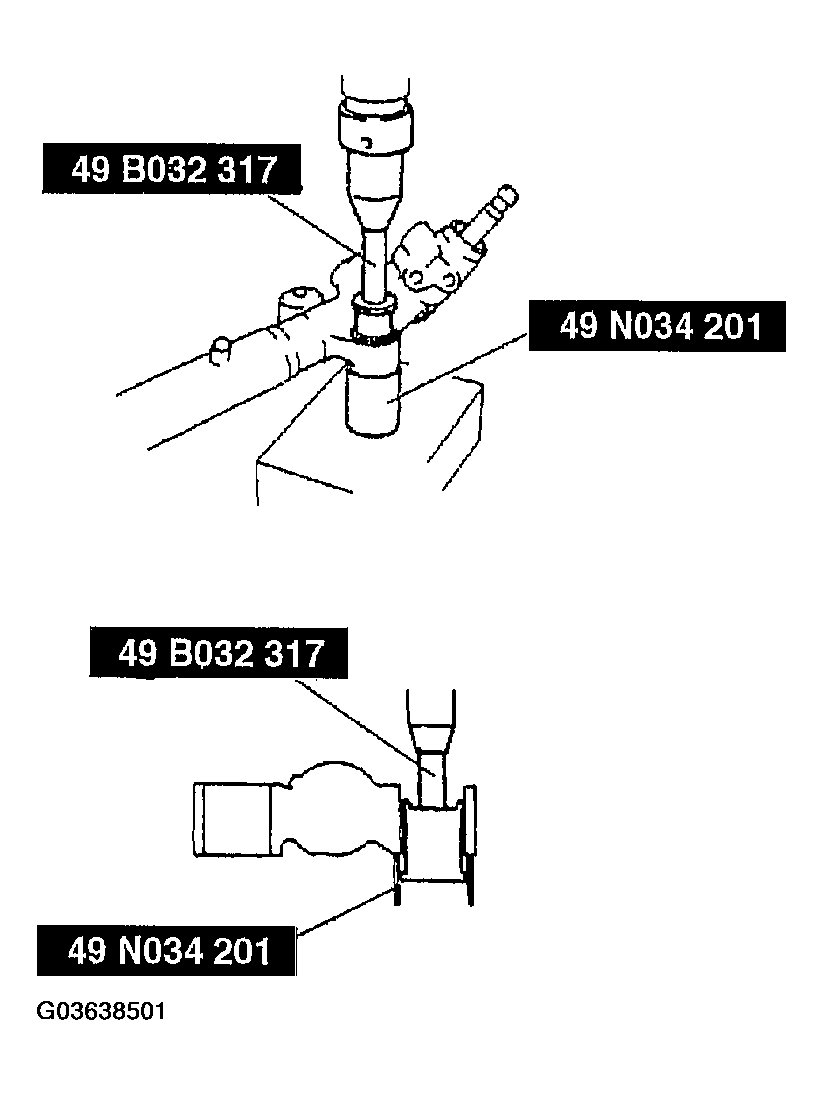

Fig 1: Pressing Out Mounting Rubber
Courtesy of MAZDA MOTORS CORP.
Reverse the gear housing, then press the mounting rubber until the mounting rubber end comes out completely from the other side. At this time, mounting rubber end and steel pipe are aligned.

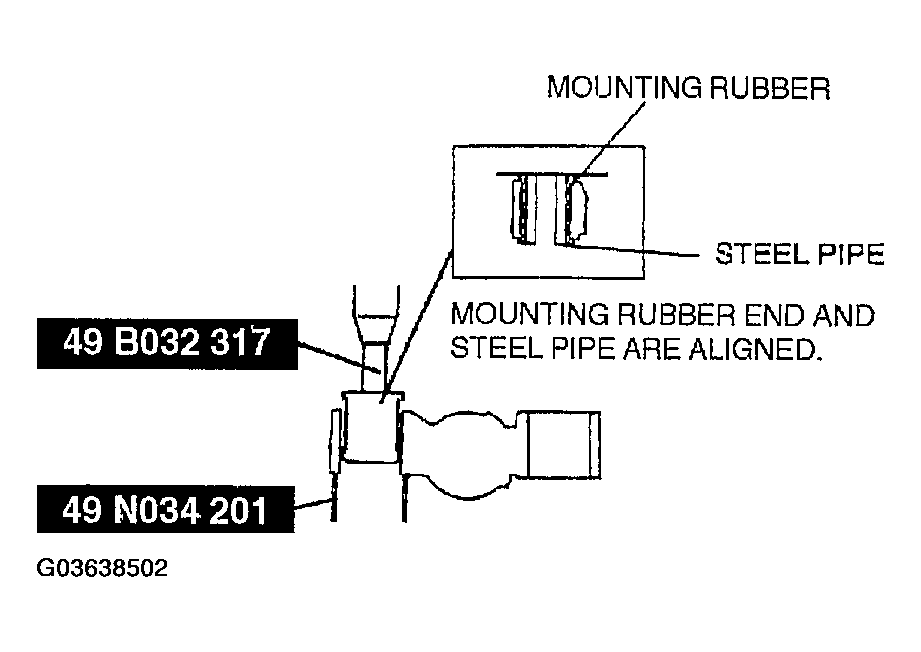

Fig 2: Pressing Mounting Rubber
Courtesy of MAZDA MOTORS CORP.
