Oil Seal, Inner Guide Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Install a new O-ring and new seal ring to the rack's piston.
After installing the seal ring, seat it properly at the piston circumference.
Install a new oil seal and inner guide to the SST .

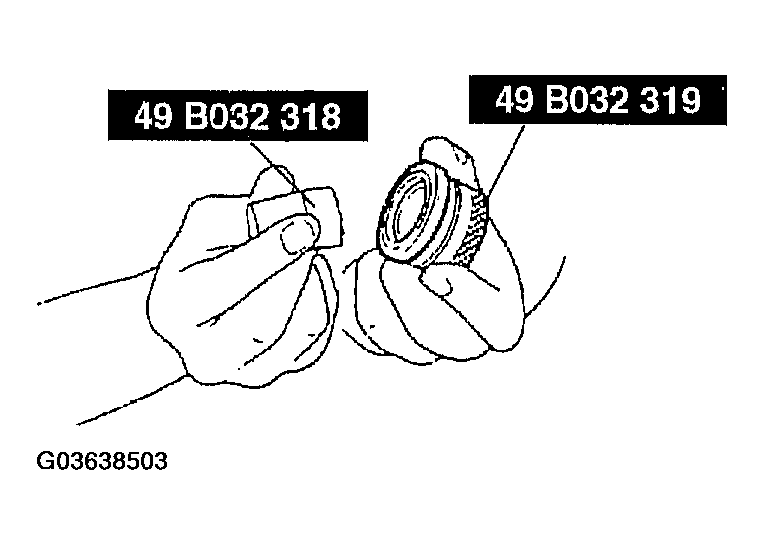

Fig 1: Installing New Oil Seal And Inner Guide To SST
Courtesy of MAZDA MOTORS CORP.
Using the SST , place the oil seal and inner guide at the edge of the steering rack's pinion, and remove the SST .
After mounting the steering rack to the gear housing, use a press to install the oil seal and inner guide to the correct position.

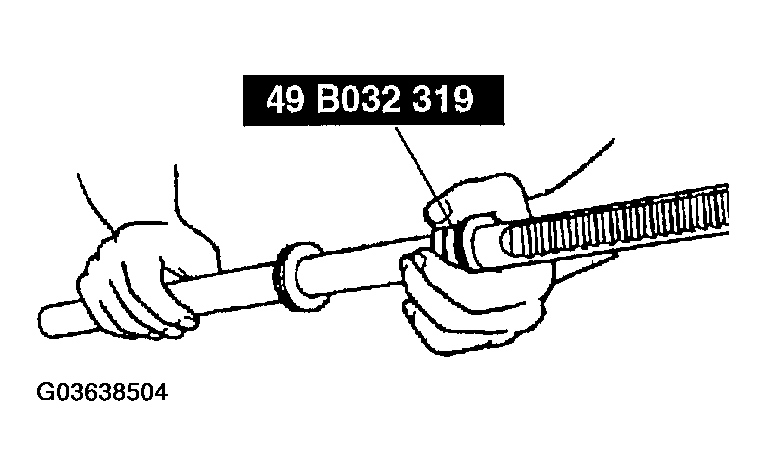

Fig 2: Placing Oil Seal And Inner Guide At Edge Of Steering Rack's Pinion
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When pressing in, do not apply a load pressure of more than 39,227 kPa {400 kgf/cm2, 5,688 psi}.
- Doing so will damage the oil seal and inner guide.
- Apply grease to the seal ring, oil seal and inner guide.
