Steering Shaft Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

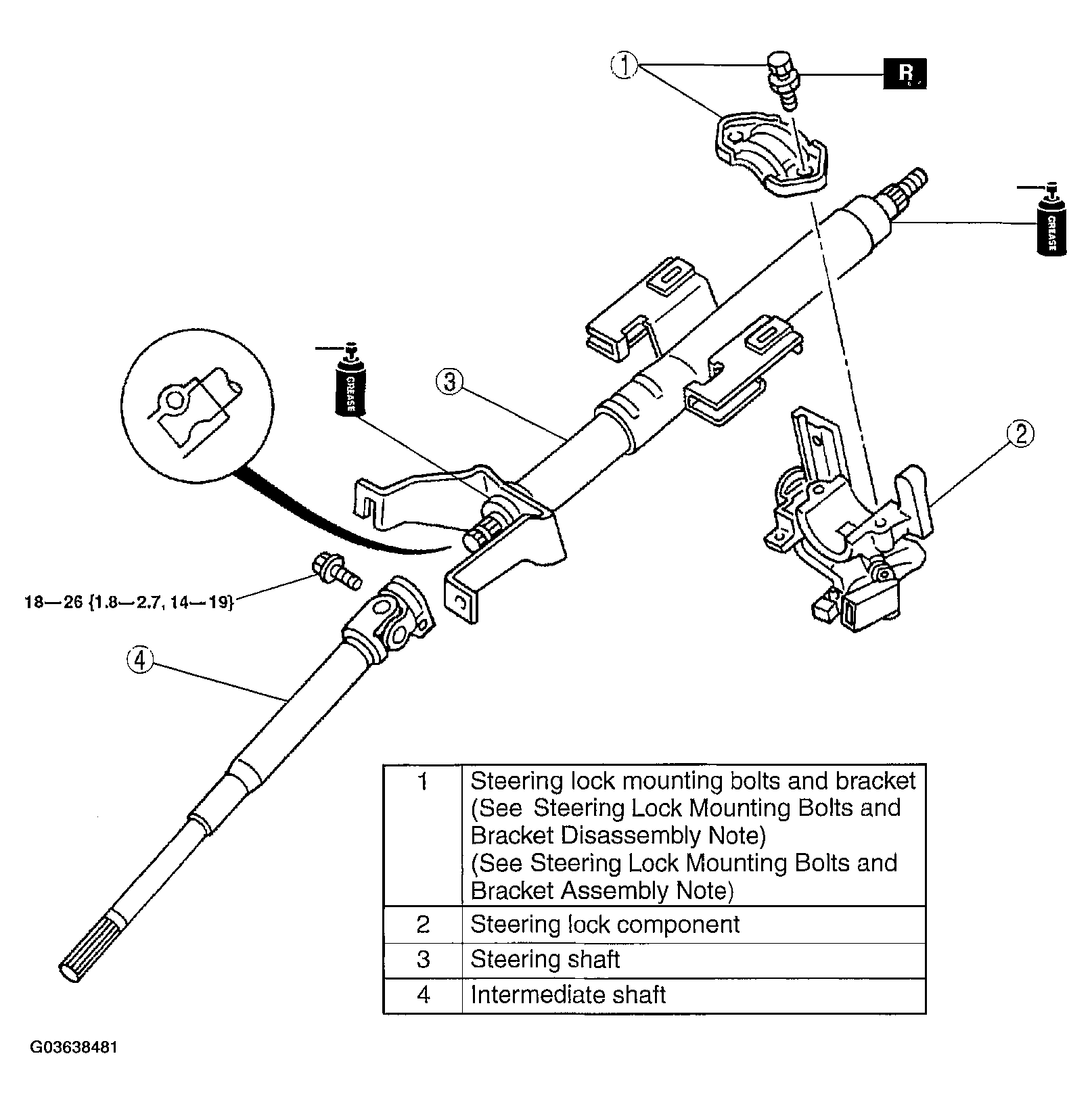

    Fig 1: Disassembling Steering Shaft
    G03638481Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
