Steering Wheel And Column Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.

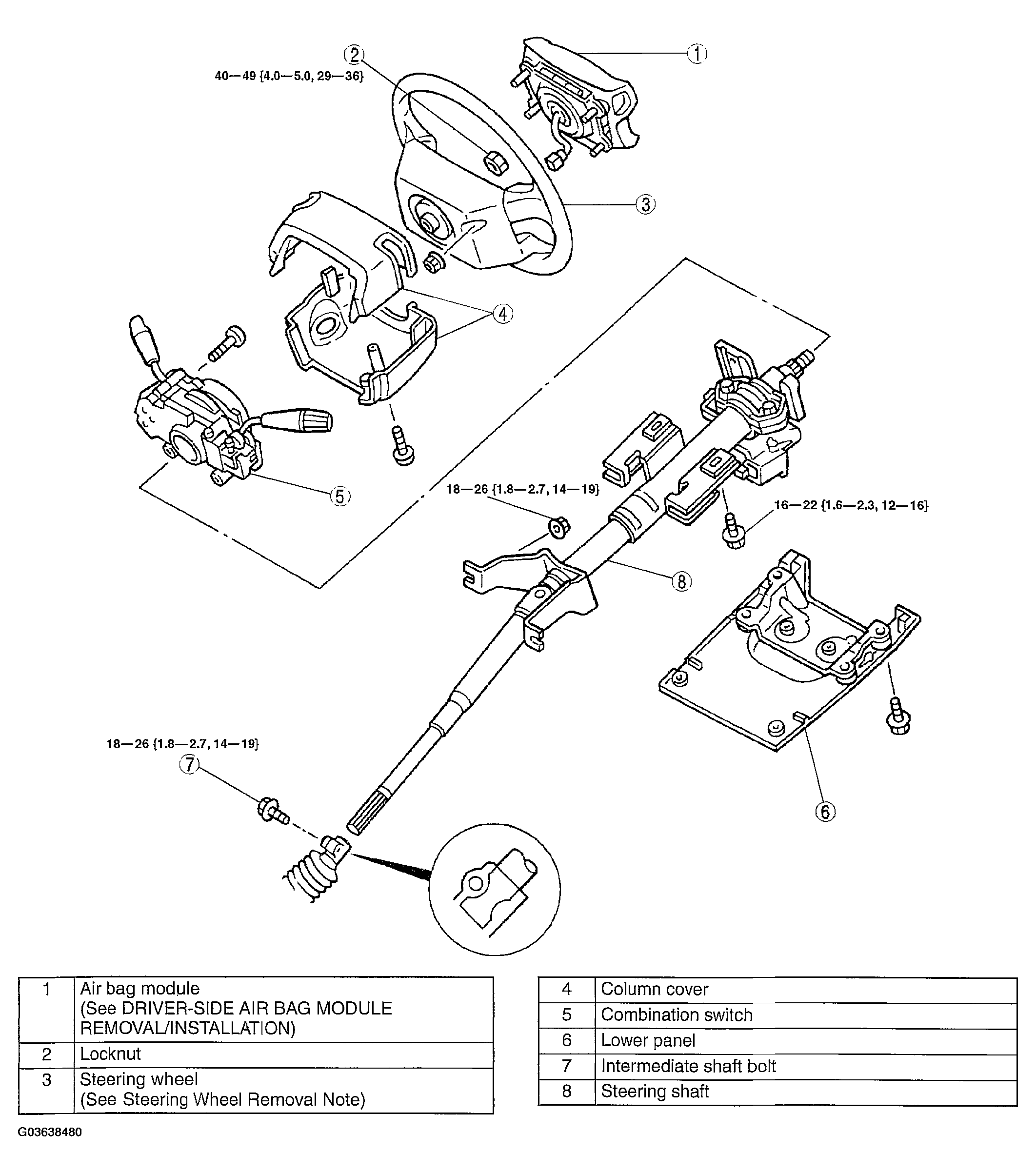

Fig 1: Removing Steering Wheel And Column - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
After installation, verify that the horn sounds.
- If the horn does not sound, remove the air bag module and connect the module connectors.
