Powertrain Control Module Connector End View (C175T)

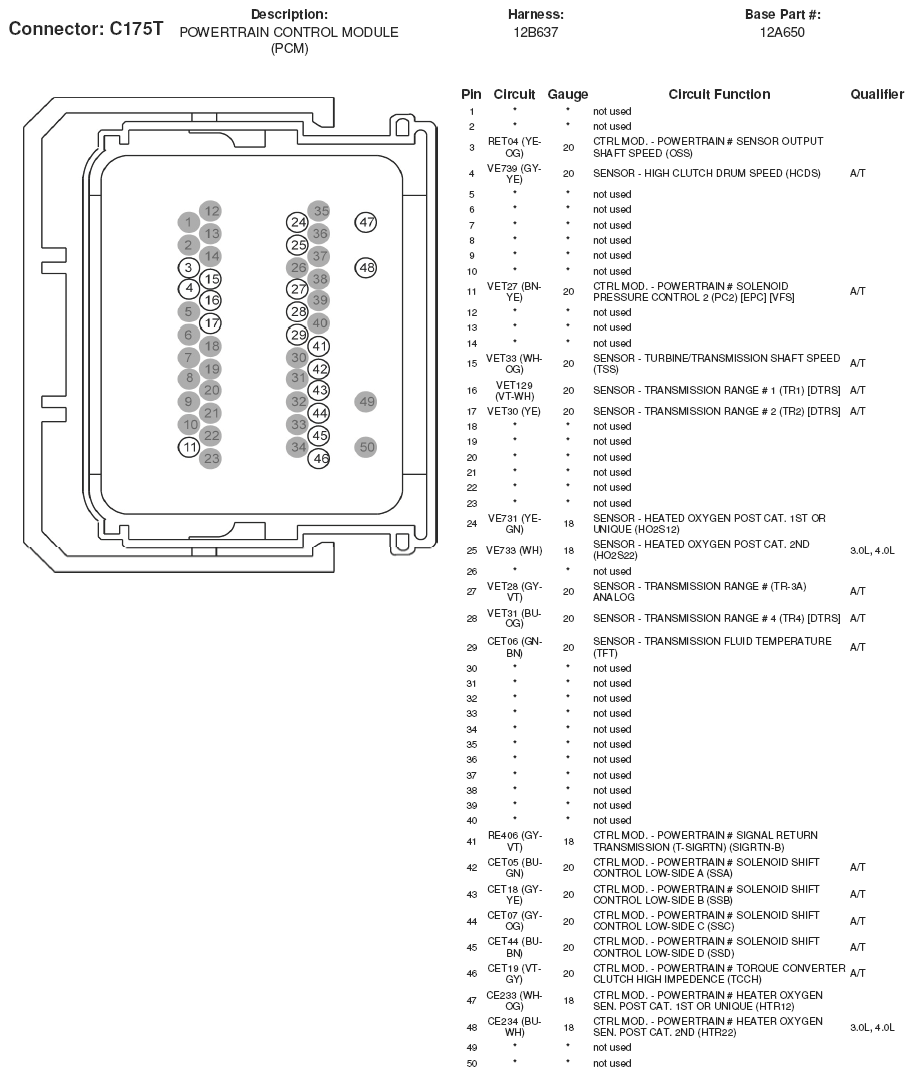

Fig 1: Powertrain Control Module Connector End View (C175T)
G05169169Courtesy of FORD MOTOR CO.
