Hood Latch And Components - Component View

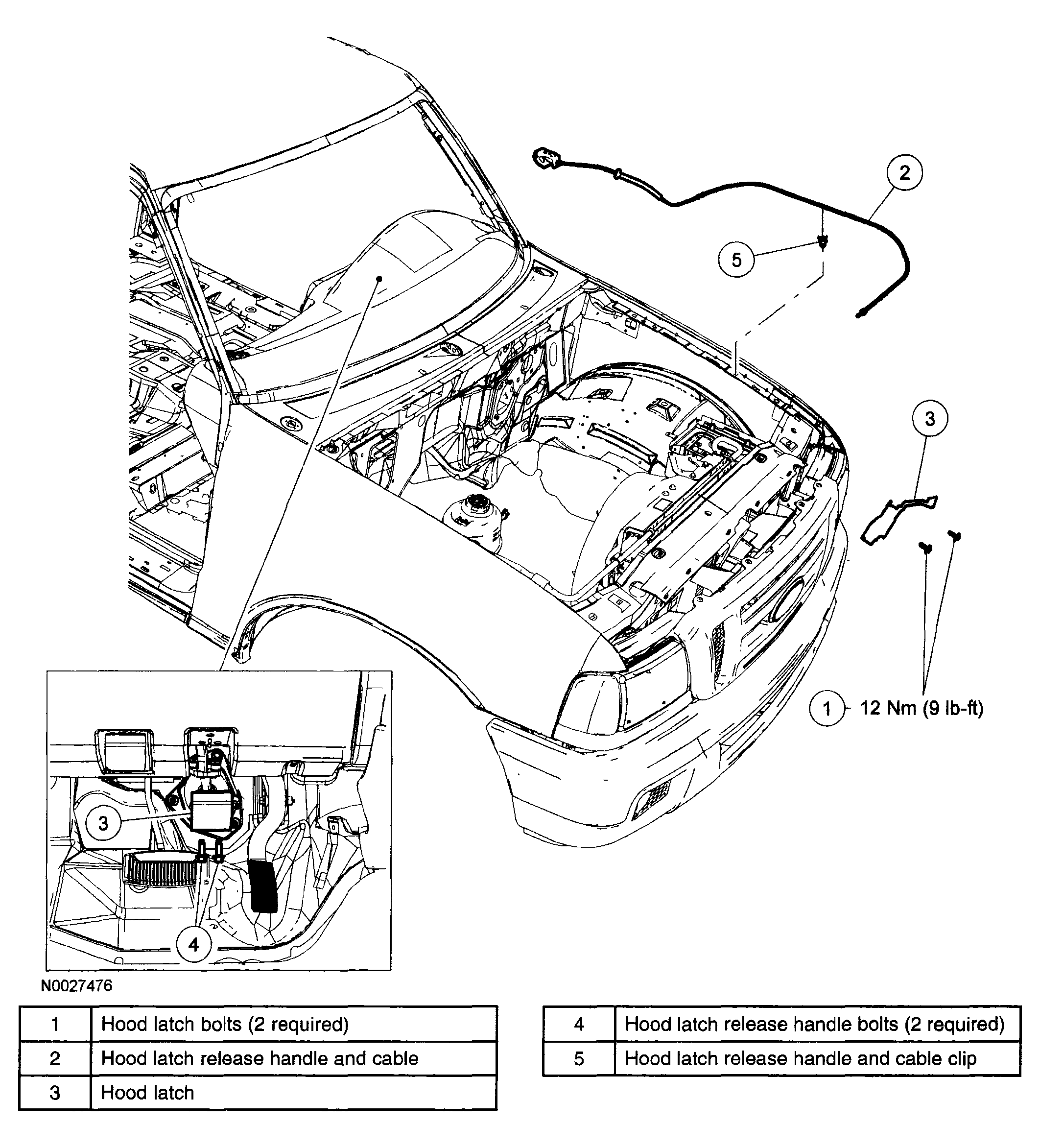

Fig 1: Identifying Hood Latch And Components With Torque Specifications
G04310422Courtesy of MAZDA MOTORS CORP.
