Floor Console: Notes

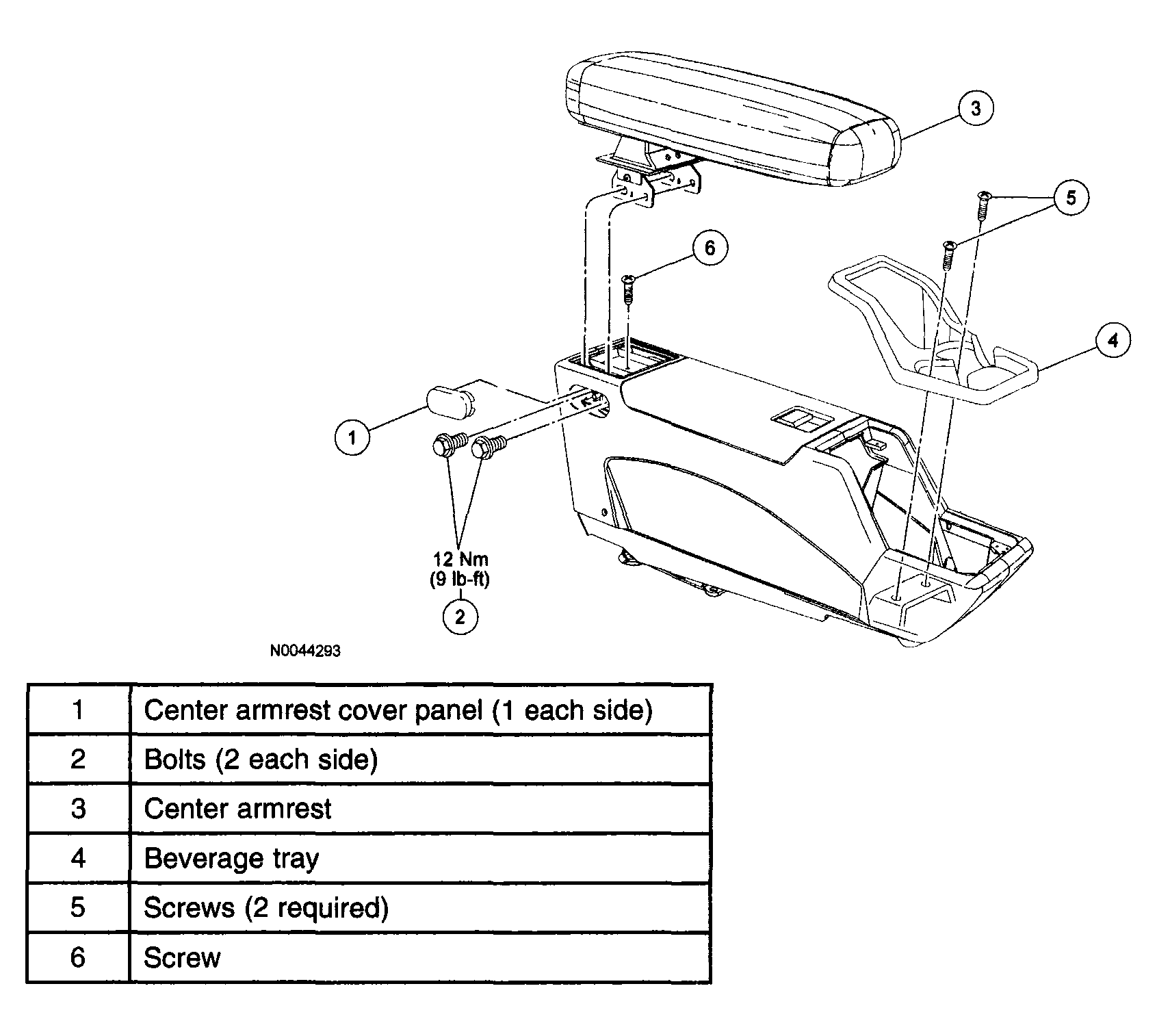

Fig 1: Removing/Installing Floor Console With Torque Specifications

G04310498

Courtesy of MAZDA MOTORS CORP.
