Slide Motor Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the slide motor connector.
Connect battery positive voltage to slide motor terminal A or B, then verify that the slide motor operate as shown in Fig 1 .

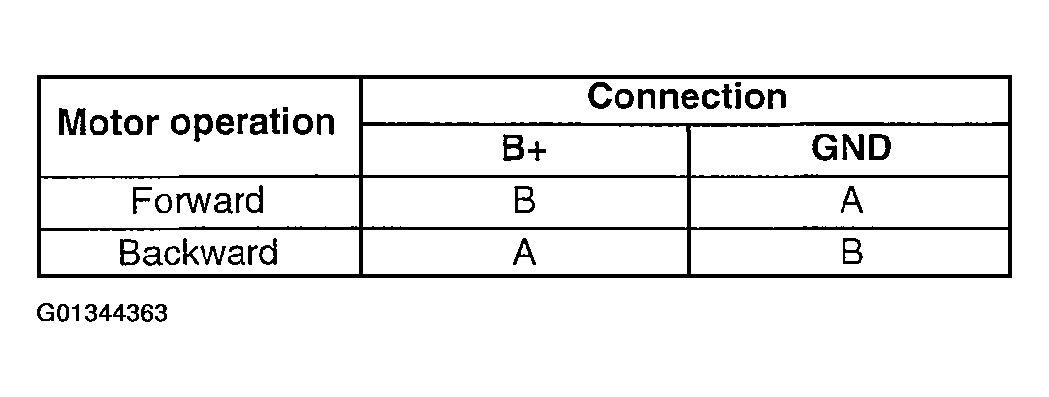

Fig 1: Motor Operation/Connection
Courtesy of MAZDA MOTORS CORP.

If the slide motor does not operate as indicated, replace the slide motor. See Fig 2 .

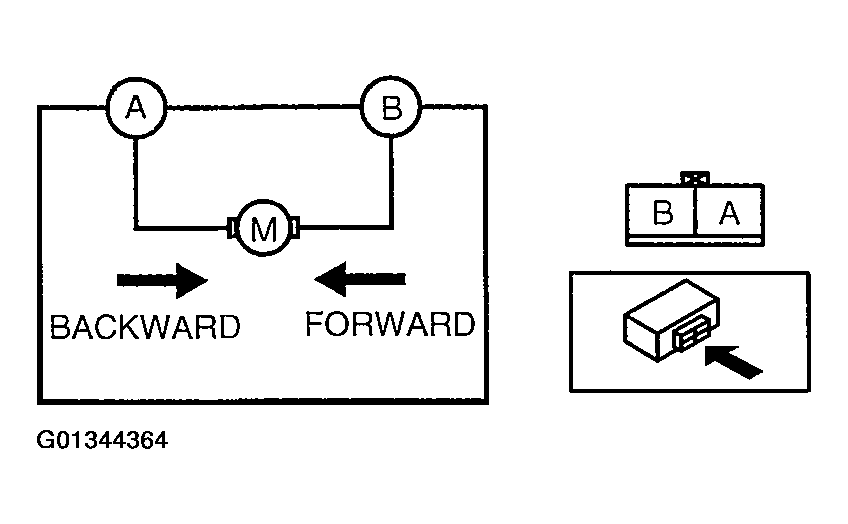

Fig 2: Inspecting Slide Motor
Courtesy of MAZDA MOTORS CORP.
