Combination Switch Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the driver-side air bag module. (See DUAL-STAGE DRIVER-SIDE AIR BAG MODULE .)
Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
Remove the column cover.
Remove the clock spring. (See CLOCKSPRING .)
Remove in the order indicated in the figure(s).

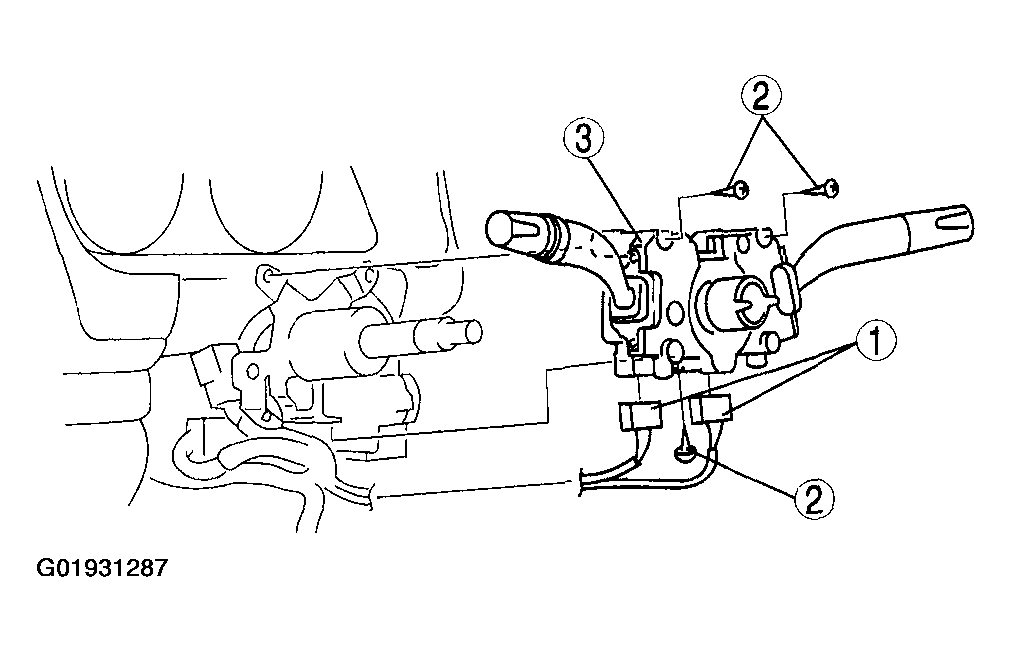

Fig 1: Removing Combination Switch
Courtesy of MAZDA MOTORS CORP.

Fig 2: Combination Switch Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
