Headlight Bulb Removal/Installation: Low-beam: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
Remove in the order indicated in the figure(s).
CAUTION:
- A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is soiled, excessive heat will build up and the light's life will be shortened. When replacing the bulb, hold the metal flange, not the glass.

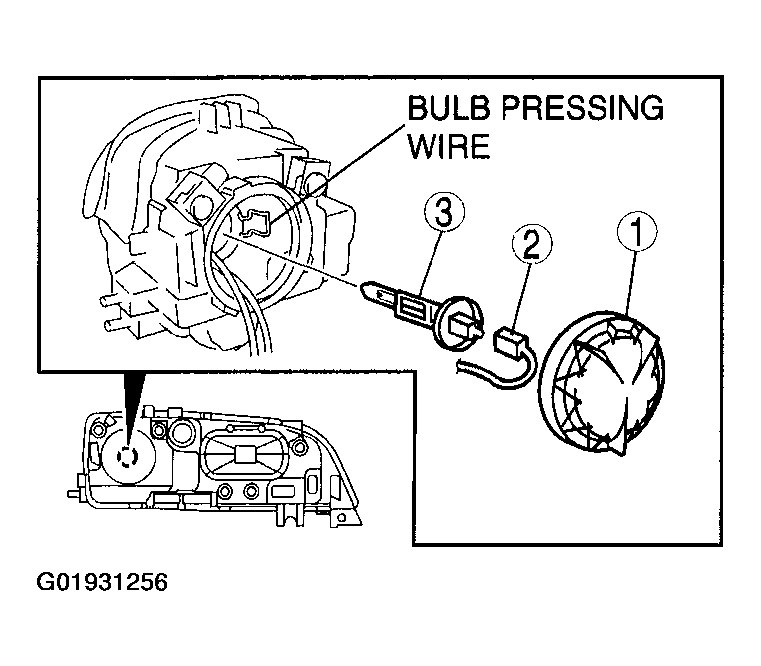

Fig 1: Removing Headlight Bulb (Low Beam)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Headlight Bulb (Low Beam) Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
