Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Prior to removal of the GEM, it is necessary to upload module configuration information to a WDS or equivalent Tester. This information needs to be downloaded into the new module once installed. For additional information, refer to GENERIC ELECTRONIC MODULE (GEM) PROGRAMMING - NGS or GENERIC ELECTRONIC MODULE (GEM) PROGRAMMING - WDS .

Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .

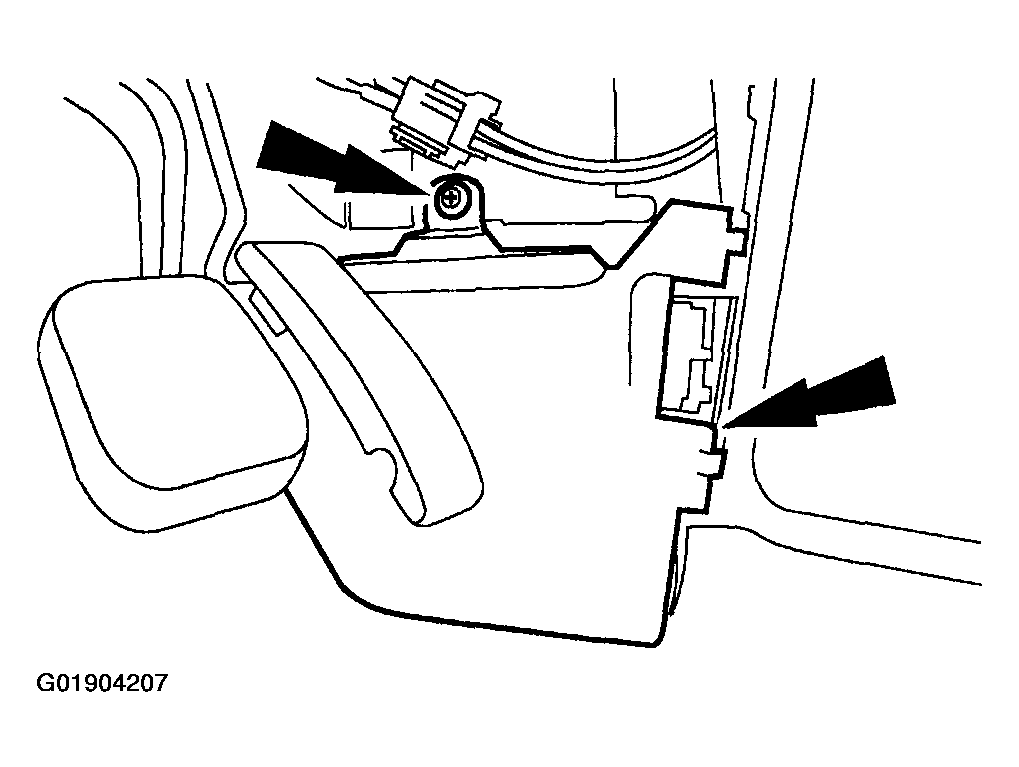

Fig 1: Removing Pin-Type Retainer And The Lower Shield
Courtesy of MAZDA MOTORS CORP.
Remove the pin-type retainer and the lower shield.

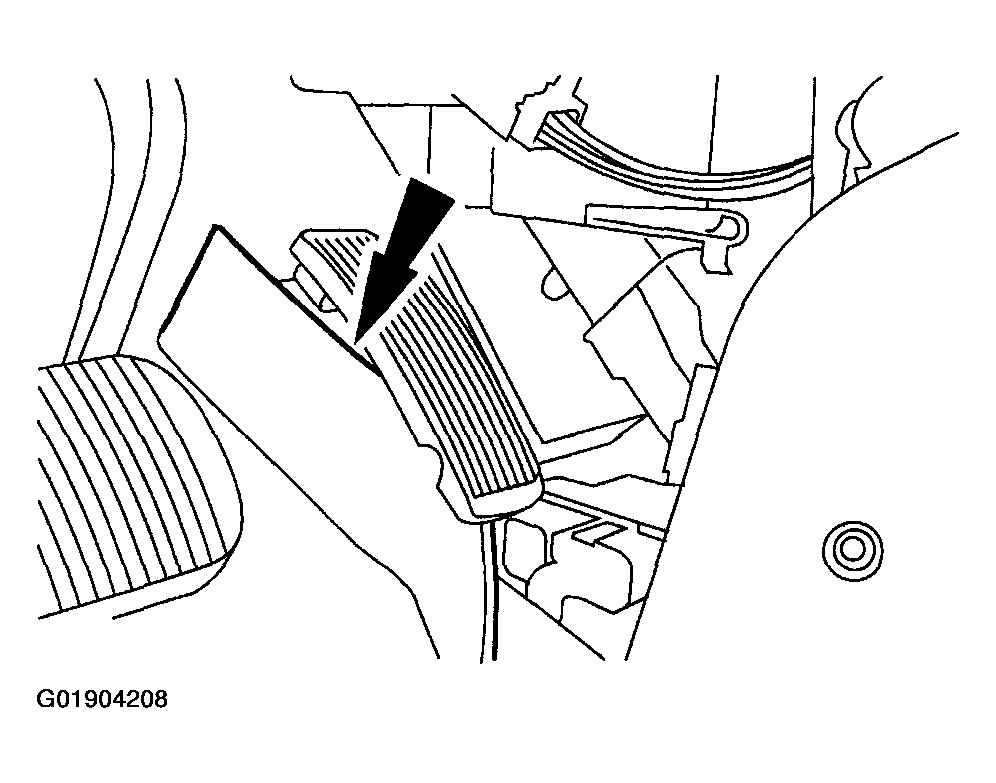

Fig 2: Removing LH And RH Carpet
Courtesy of MAZDA MOTORS CORP.
Position the LH and RH carpet aside from the center tunnel.

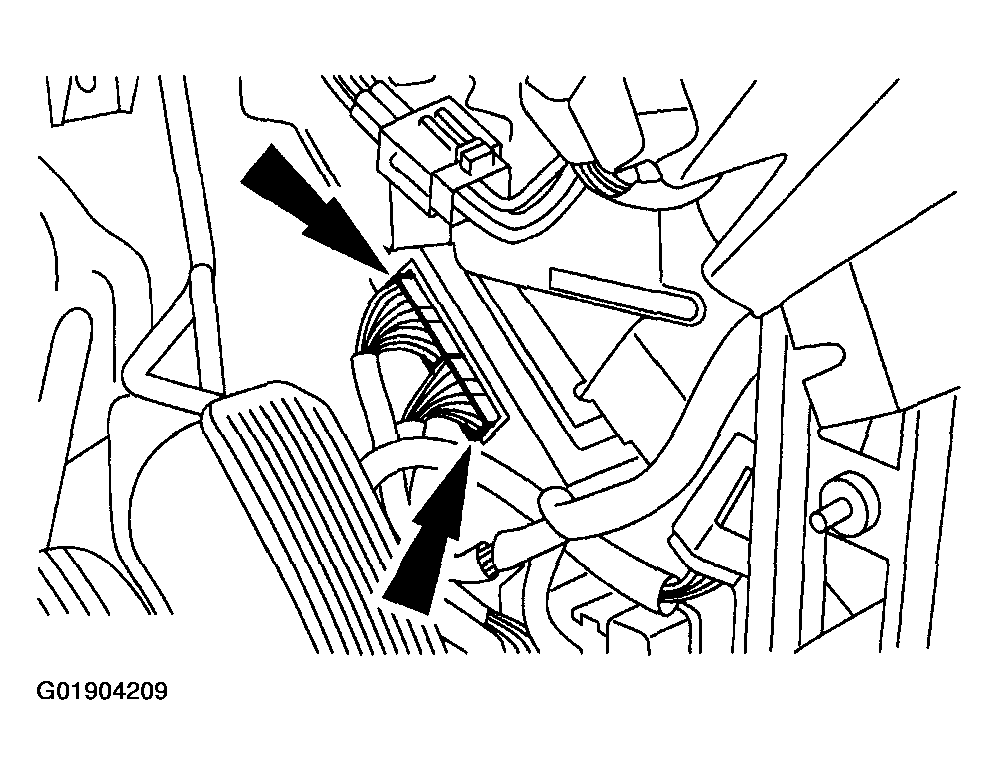

Fig 3: Disconnecting GEM Electrical Connectors
Courtesy of MAZDA MOTORS CORP.
Disconnect the GEM electrical connectors.

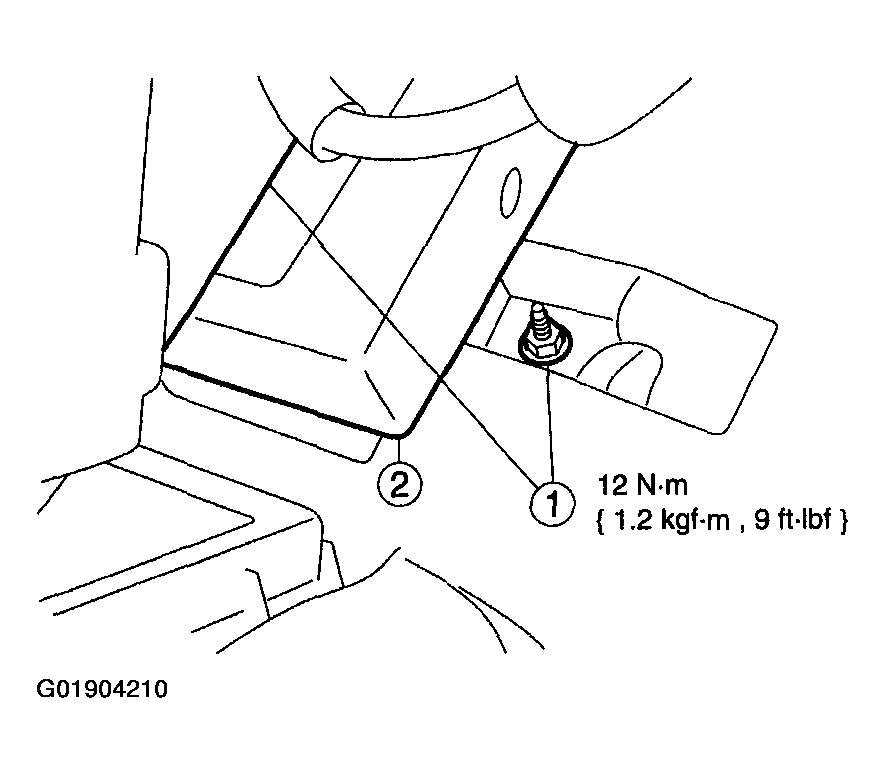

Fig 4: Pulling Back Insulation And Removing Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the GEM
1. Pull back the insulation and remove the nuts.
2. Remove the GEM.
  CAUTION:
  - Once the new GEM is installed, it is necessary to download the module configuration information from the scan tool into the new GEM. You must also configure the new GEM for dealer-installed options. Please refer to applicable accessory installation procedures. For additional information; refer to MODULE CONFIGURATION .
To install, reverse the removal procedure.
- Configure the GEM. Refer to GENERIC ELECTRONIC MODULE (GEM) PROGRAMMING - NGS or GENERIC ELECTRONIC MODULE (GEM) PROGRAMMING - WDS .
