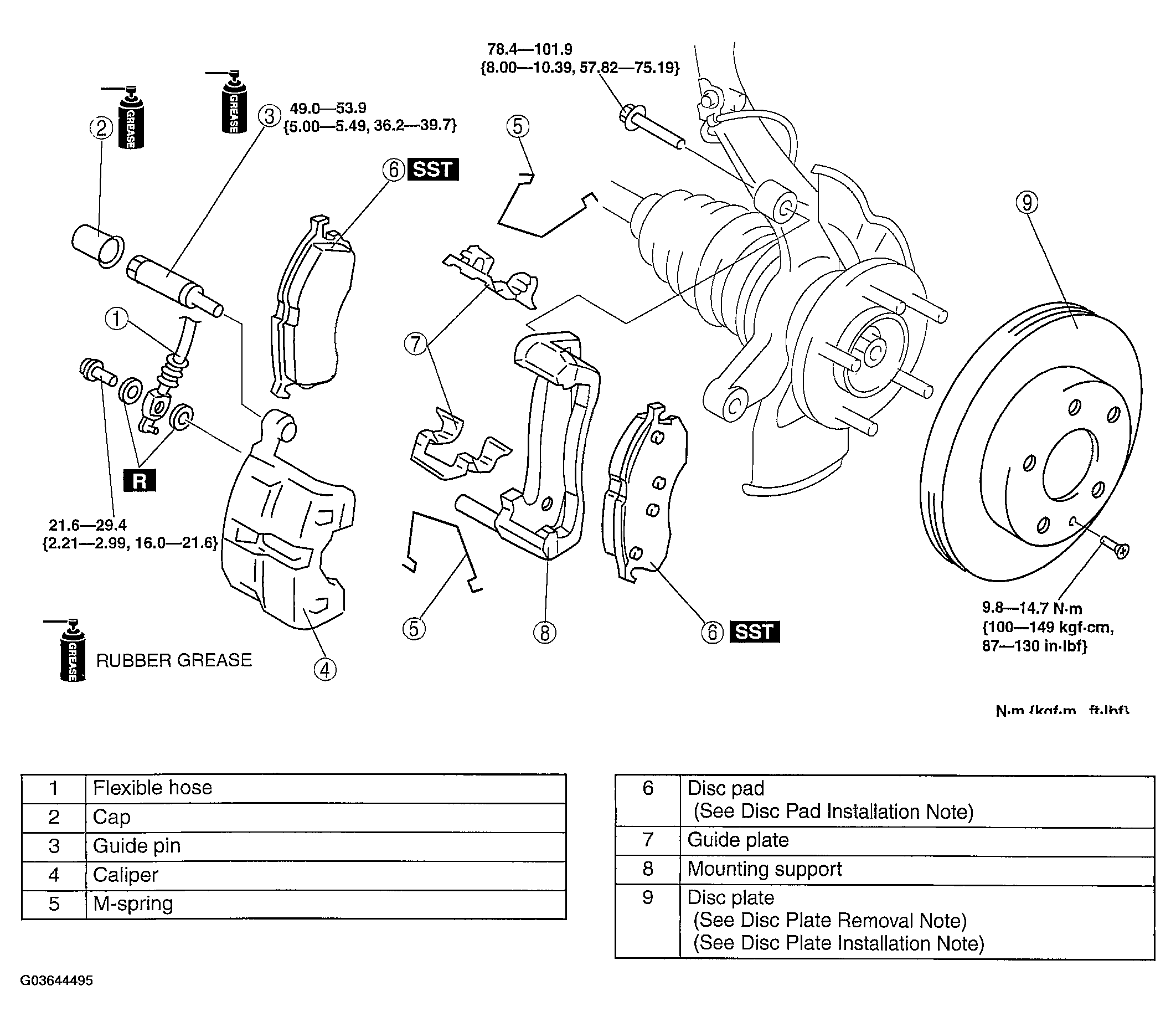

Front Brake (Disc) Removal/Installation: Notes
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
- After installation, depress the pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.
