Steering Wheel And Column Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read AIR BAG SYSTEM WARNINGS before handling the air bag module. (See SERVICE WARNINGS .) (See SERVICE CAUTIONS .)
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

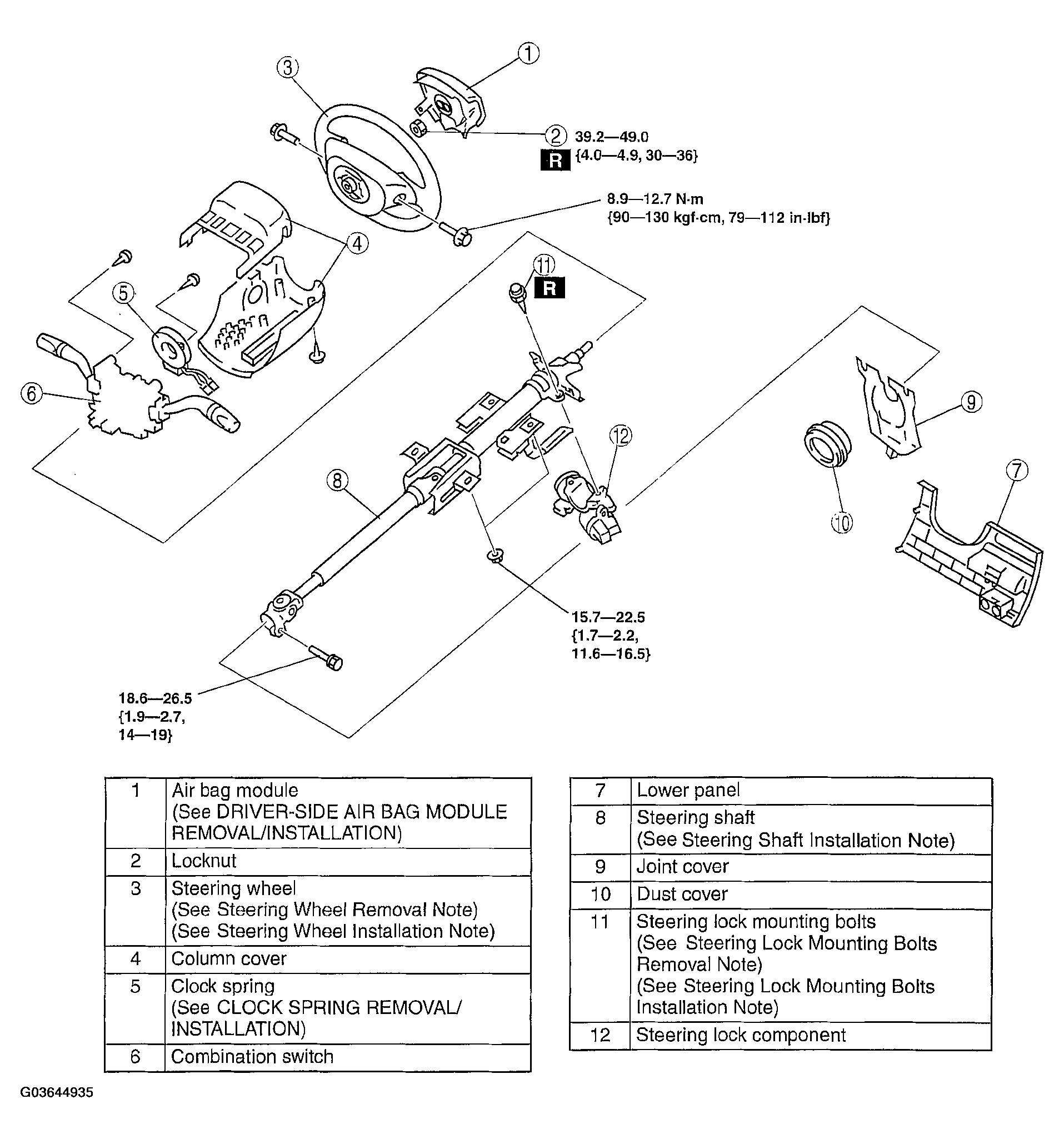

    Fig 1: Removing/Installing Steering Wheel And Column (Torque Specs)
    G03644935Courtesy of MAZDA MOTORS CORP.
