Caliper (Front) Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

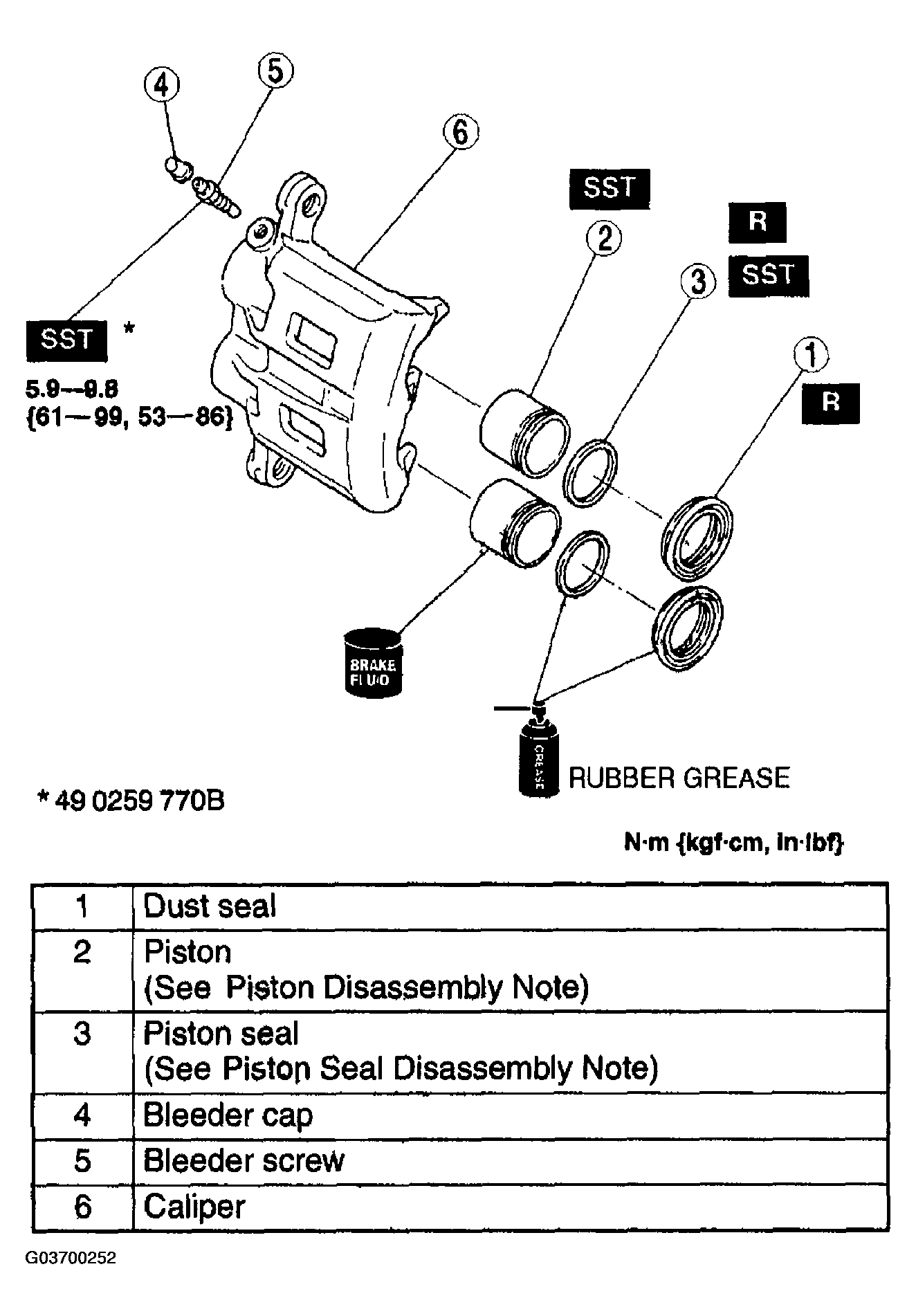

    Fig 1: Disassembling Caliper (Front) - With Torque Specifications
    G03700252Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of removal.
