Exhaust System Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before servicing the exhaust system.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

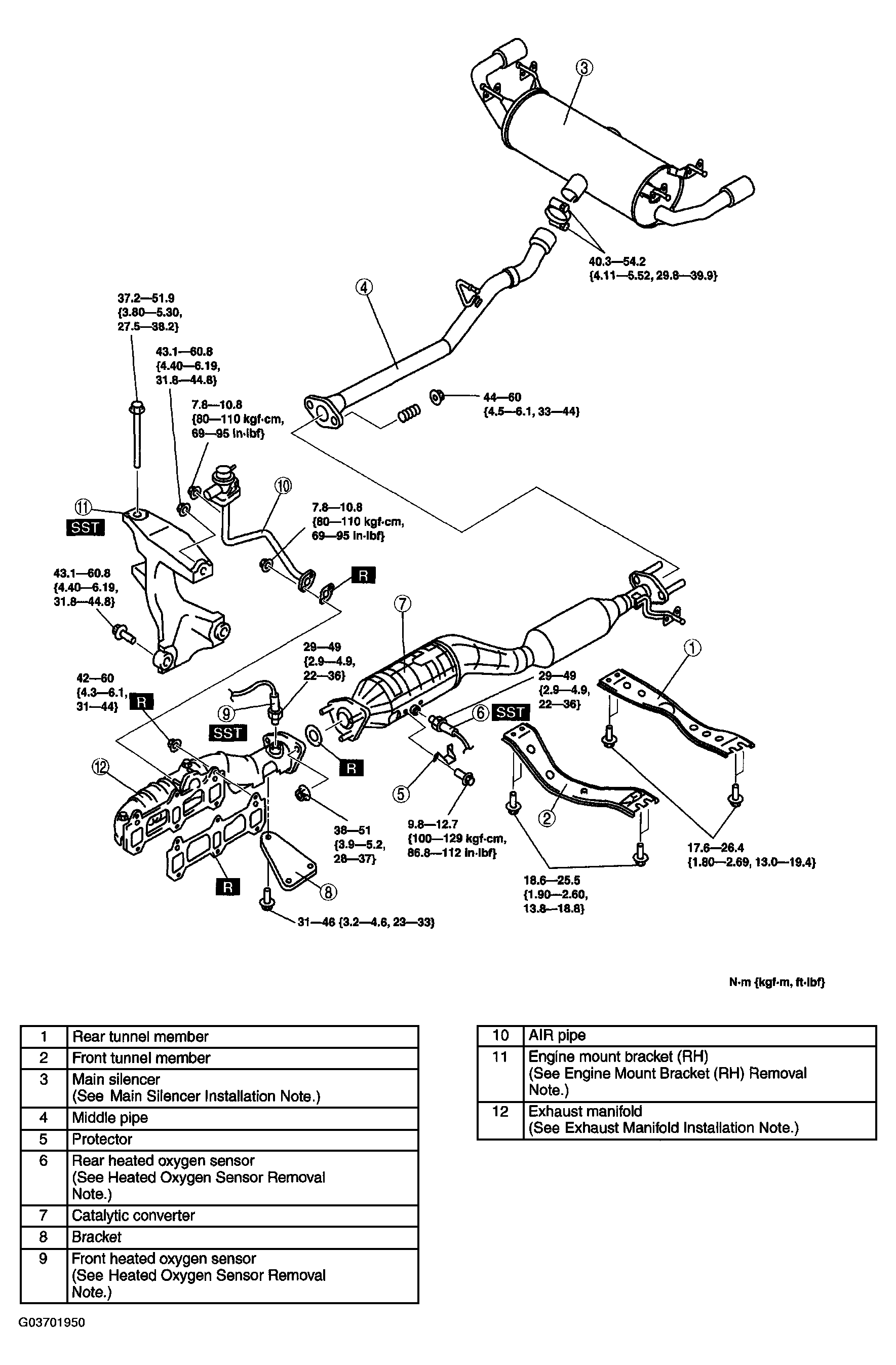

    Fig 1: Exhaust System With Torque Specifications
    G03701950Courtesy of MAZDA MOTORS CORP.
