Disc Pad Installation Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the piston inward using the SST  .
  2. Install the new pads in the mounting support.

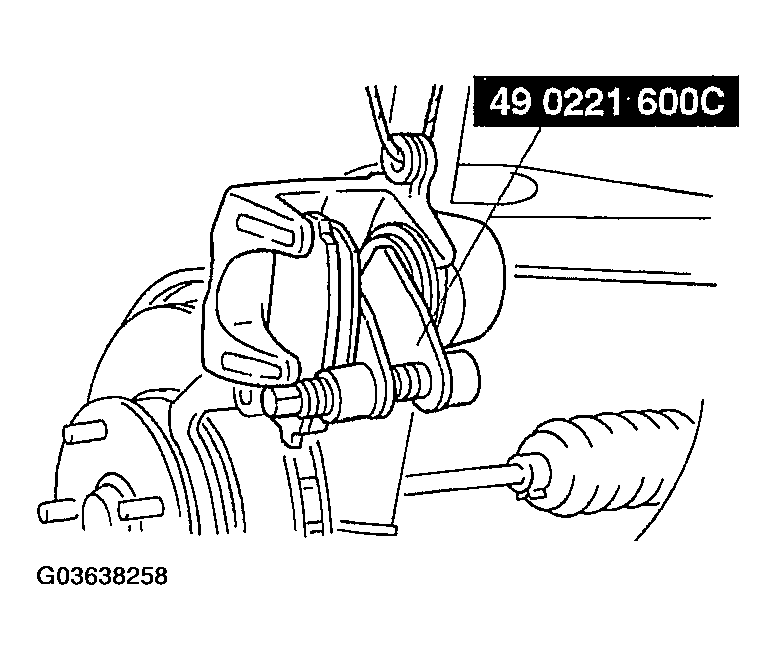

    Fig 1: Pushing Piston Inward Using SST
    G03638258Courtesy of MAZDA MOTORS CORP.
