Front Brake (Disc) Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

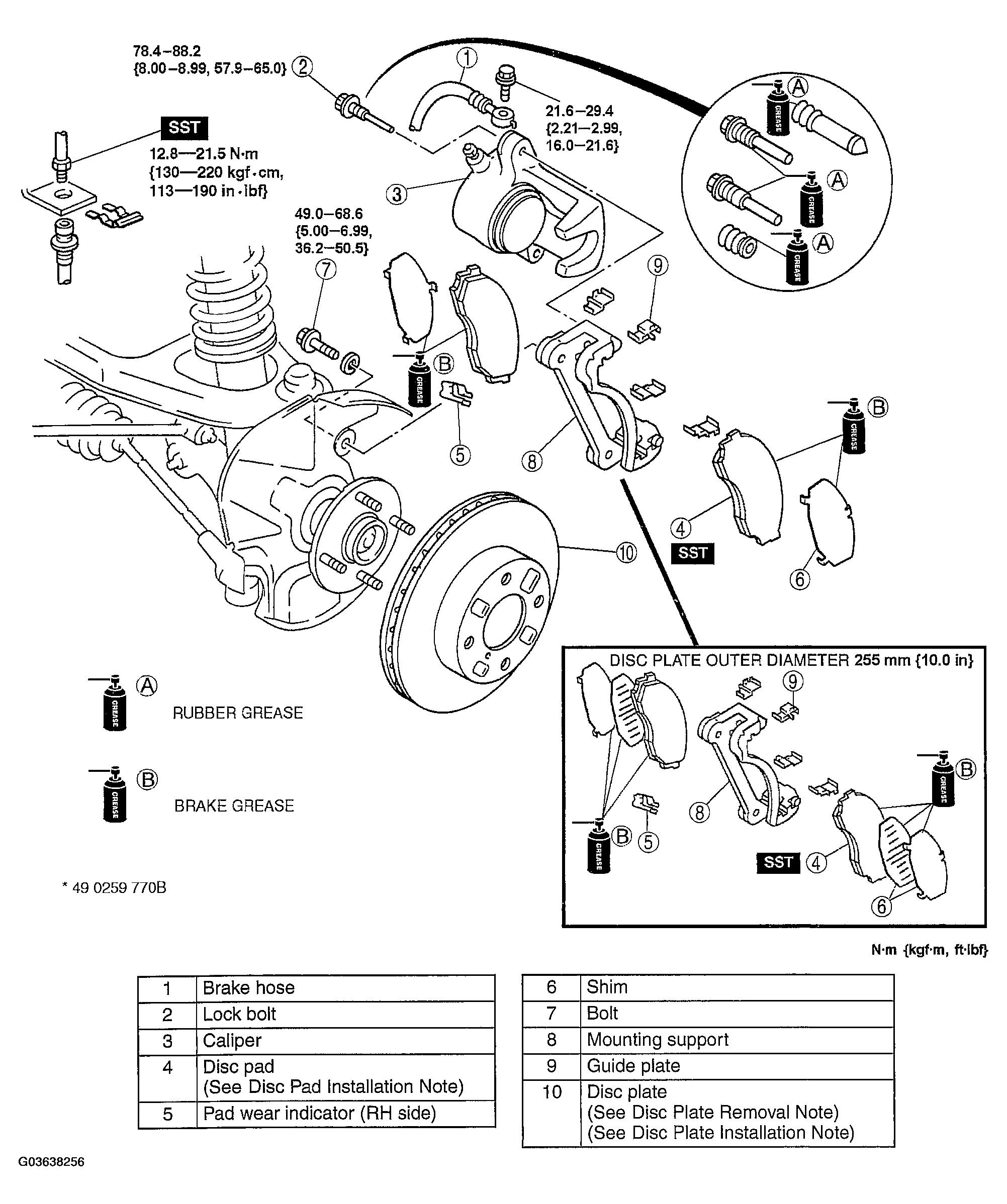

    Fig 1: Exploded View Of Front Brake (Disc) & Torque Specifications
    G03638256Courtesy of MAZDA MOTORS CORP.
