Master Cylinder Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. After removing the brake fluid, disassemble in the order indicated in the table,
  2. Assemble in the reverse order of disassembly.

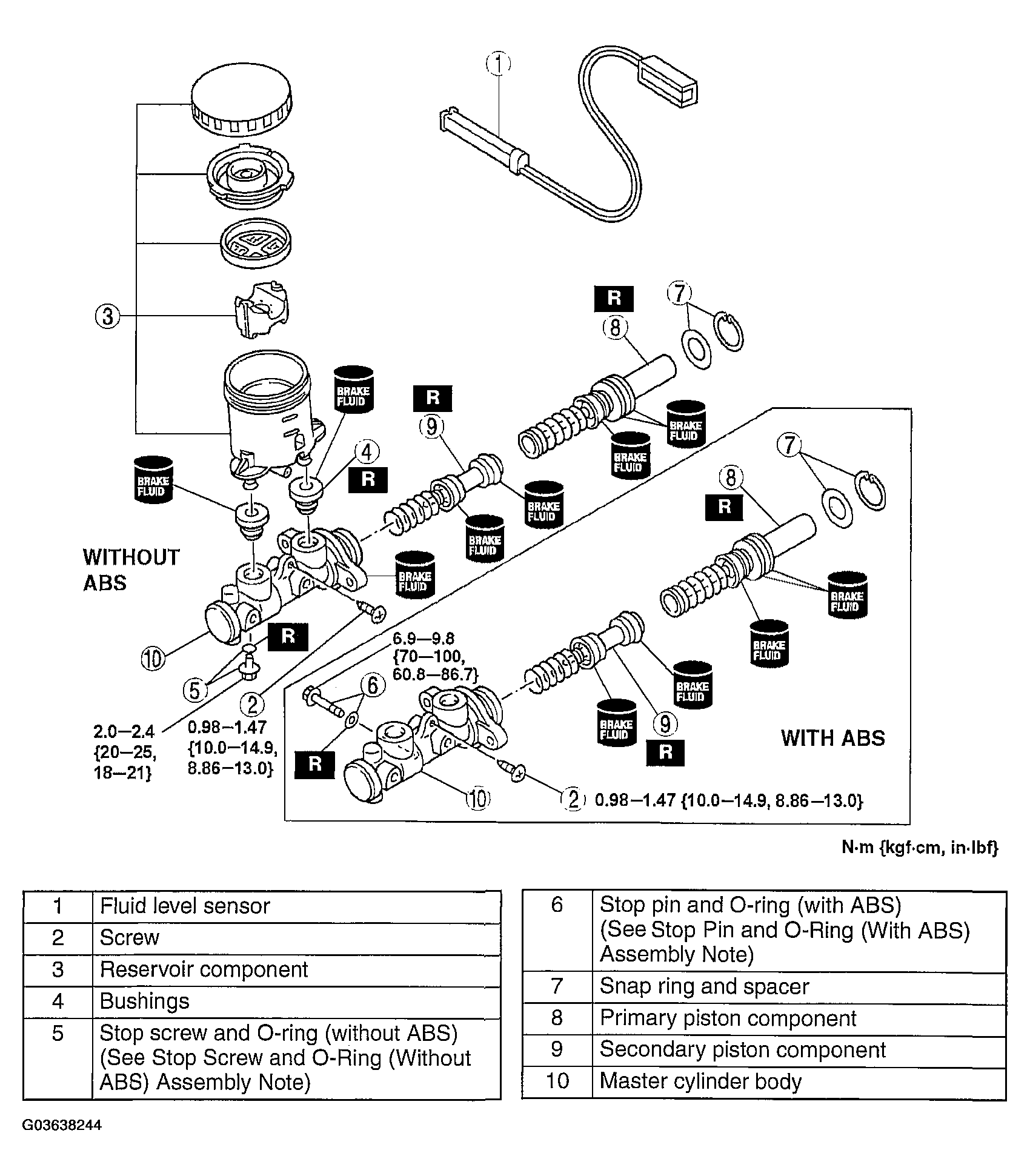

    Fig 1: Exploded View Of Master Cylinder & Torque Specifications
    G03638244Courtesy of MAZDA MOTORS CORP.
