Master Cylinder Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cruise actuator.

    (See CRUISE ACTUATOR REMOVAL/INSTALLATION .)

  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

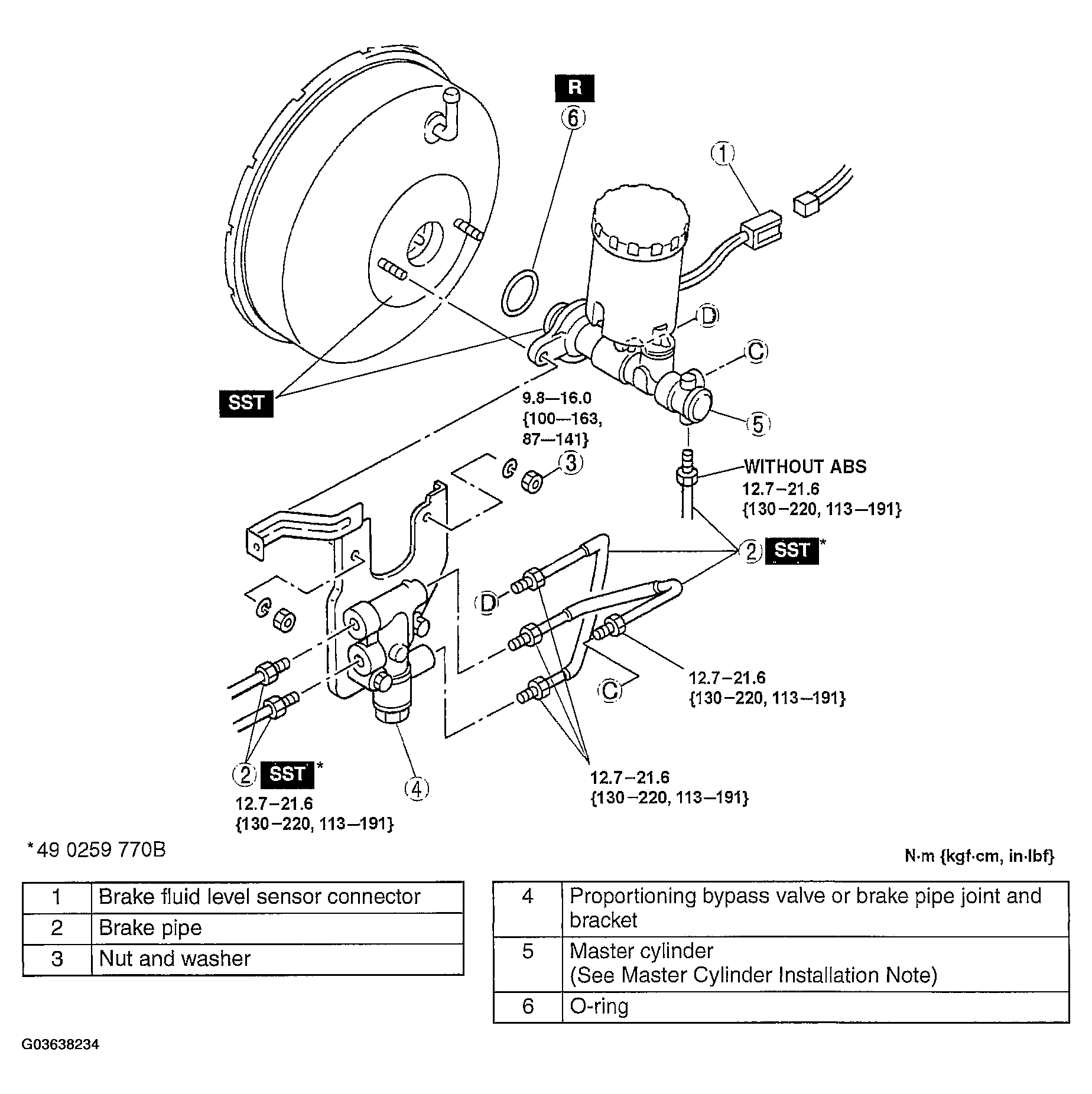

    Fig 1: Exploded View Of Master Cylinder & Torque Specifications
    G03638234Courtesy of MAZDA MOTORS CORP.
