Power Brake Unit Removal/Installation: Notes
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

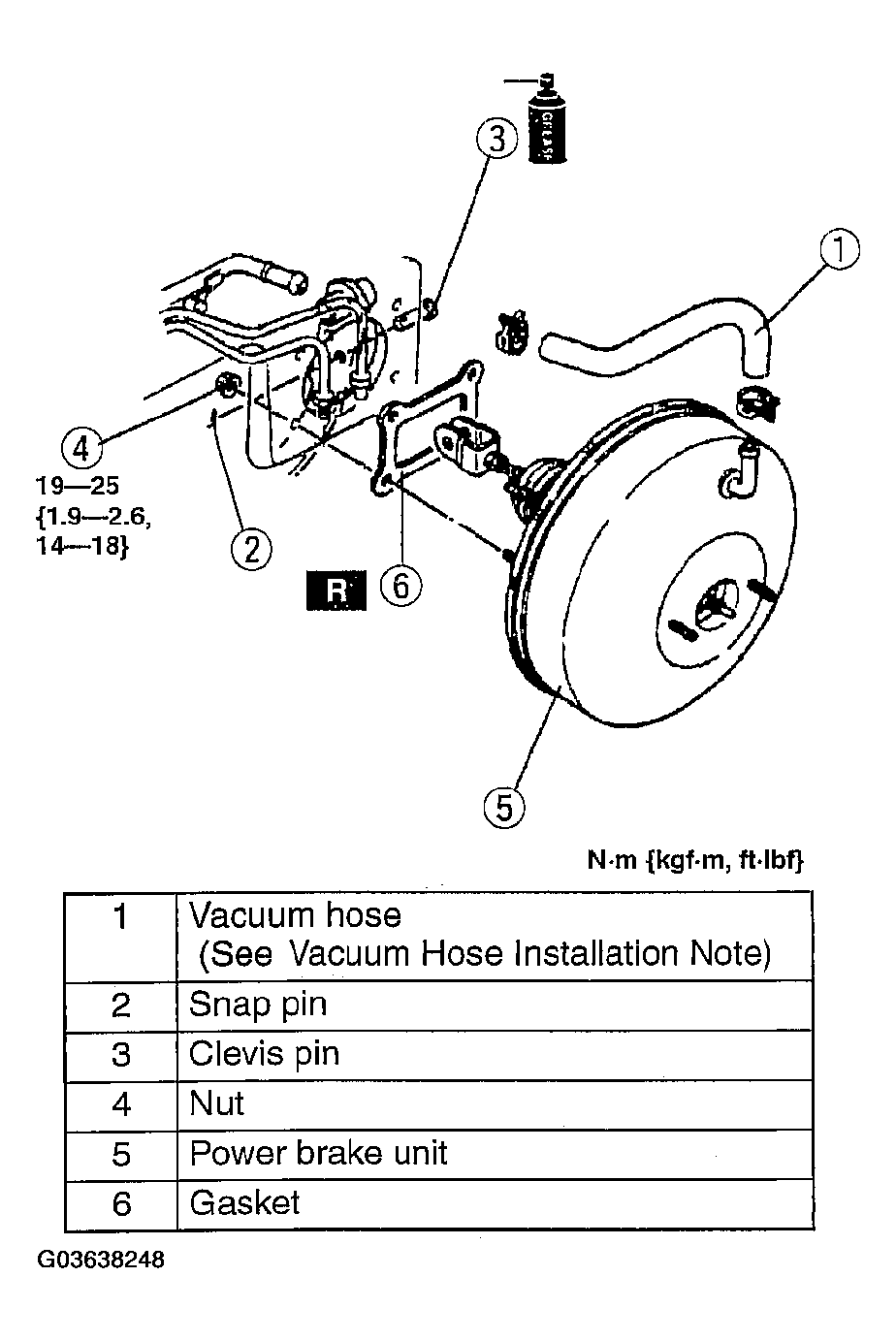

- Remove the master cylinder and the proportioning bypass valve (without ABS) and brake pipe joint (with ABS).
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
