Trunk Lid Lock And Opener Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the rear package trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  4. Remove the rear end mat.
  5. Remove the driver's side trunk side trim.
  6. Remove the trunk end trim.
  7. Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION .)
  8. Remove in the order indicated in the table.

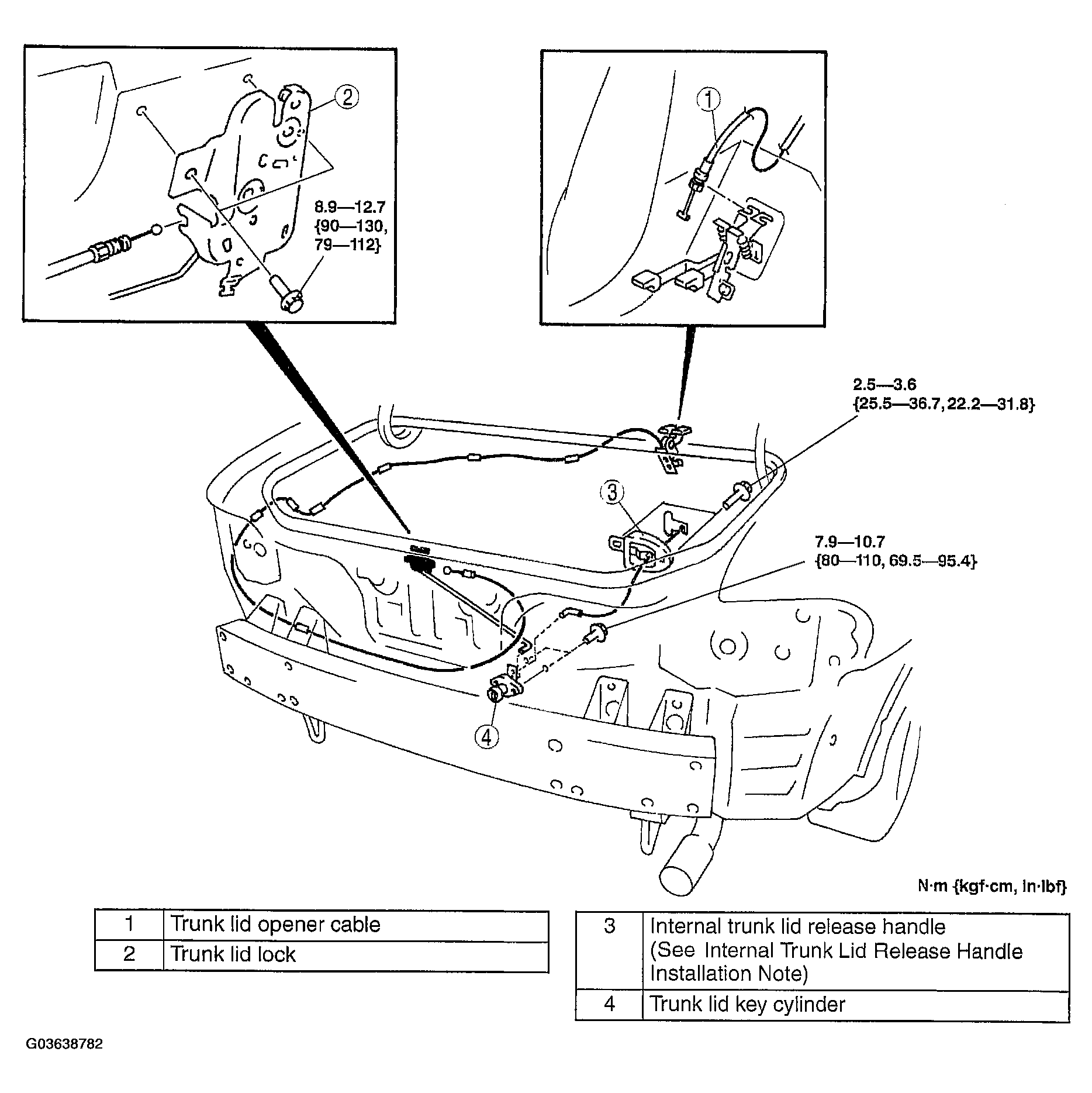

    Fig 1: Removing Trunk Lid Lock And Opener
    G03638782Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
  10. Adjust the trunk lid. (See TRUNK LID ADJUSTMENT .)
