Without Cruise Control System

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fog light switch. (See FRONT FOG LIGHT SWITCH REMOVAL/INSTALLATION .)
  2. Inspect for continuity between the front fog light switch terminals using an ohmmeter.
    • If not as specified, replace the front fog light switch.
    Fig 1: Front Fog Light Switch Terminals Continuity Table
    G03638950Courtesy of MAZDA MOTORS CORP.

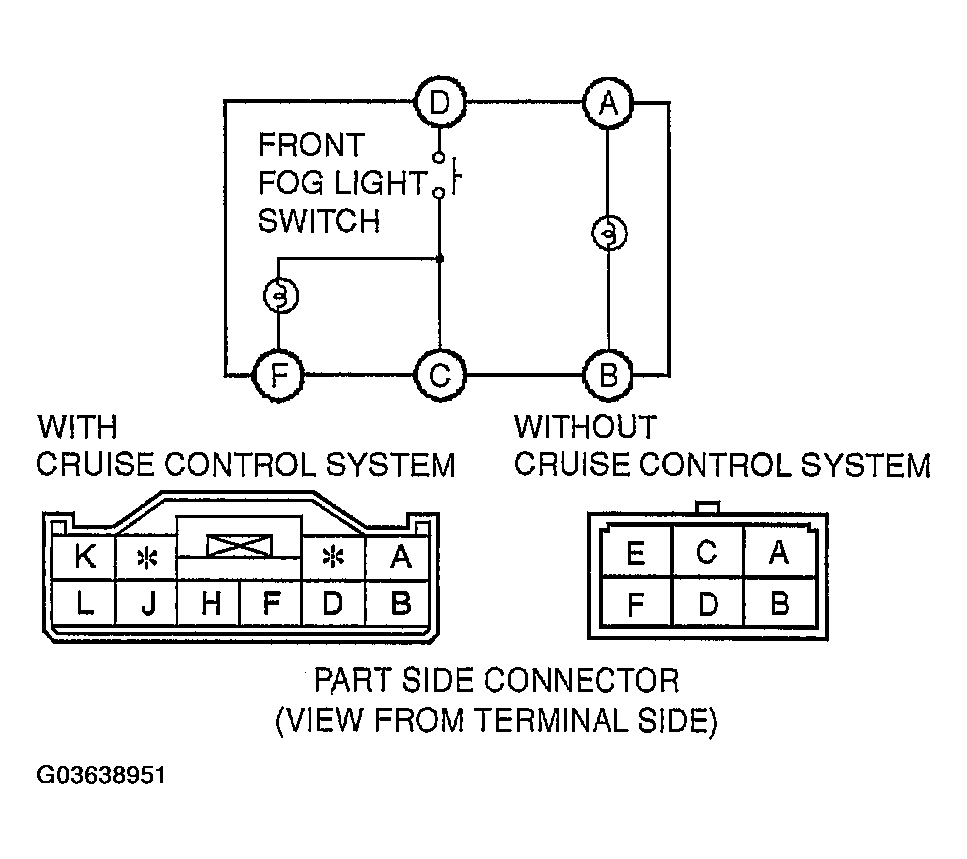

    Fig 2: Inspecting Front Fog Light Switch Connector Terminals
    G03638951Courtesy of MAZDA MOTORS CORP.
