Cover Removal Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a tape-wrapped screwdriver between the cover and the base unit, then unhook the hook A.
  2. To unhook the hook B, pull the cover upward.

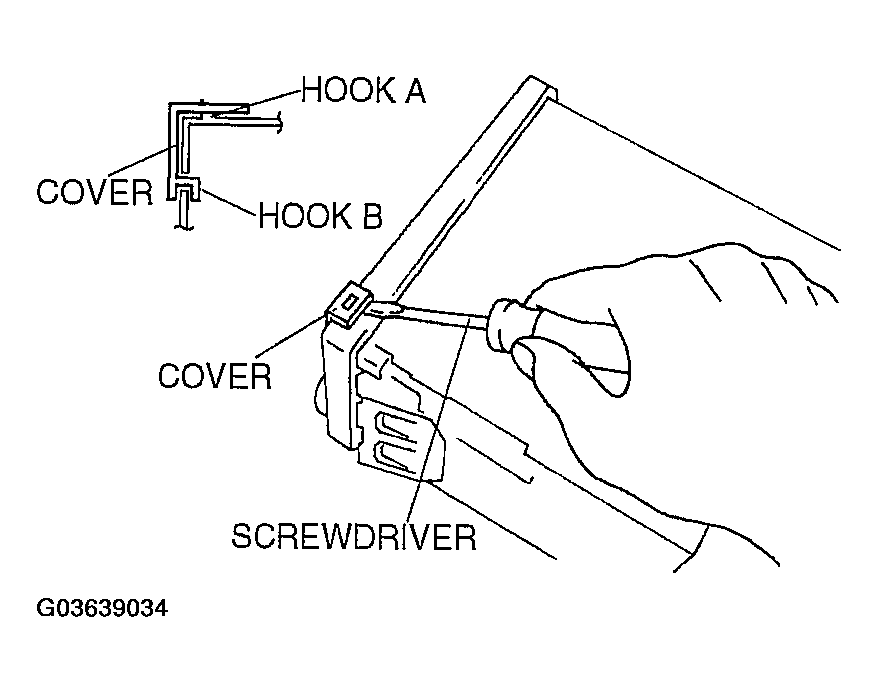

    Fig 1: Removing Cover
    G03639034Courtesy of MAZDA MOTORS CORP.
