Climate Control Assembly Connector End View (C294A)

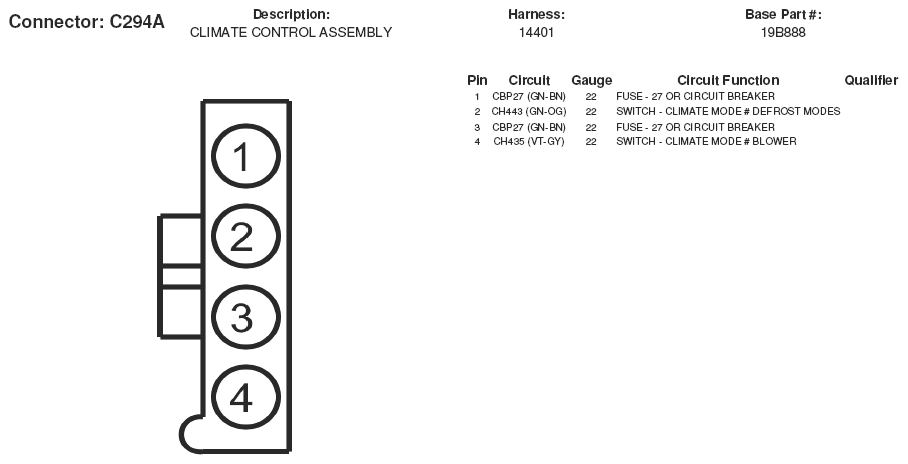

Fig 1: Climate Control Assembly Connector End View (C294A)
G05169214Courtesy of FORD MOTOR CO.
