Climate Control Assembly Connector End View (C294C)

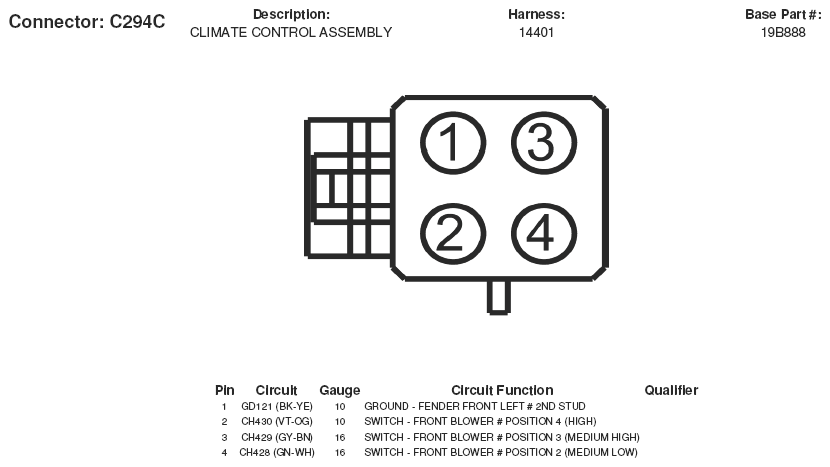

Fig 1: Climate Control Assembly Connector End View (C294C)
G05169216Courtesy of FORD MOTOR CO.
