Multifunction Switch Connector End View (C202B)

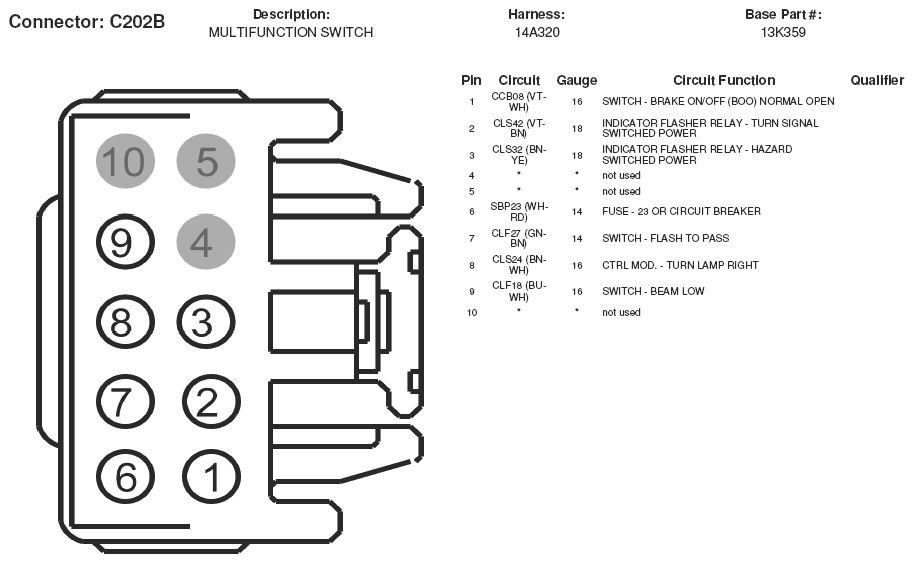

Fig 1: Multifunction Switch Connector End View (C202B)

G05169180

Courtesy of FORD MOTOR CO.
