Speed Control On/Off Switch Connector End View (C2178)

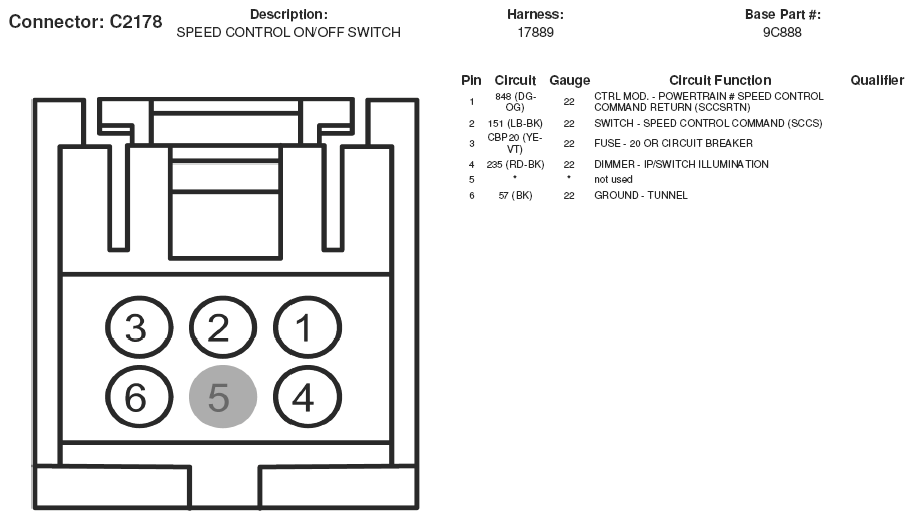

Fig 1: Speed Control On/Off Switch Connector End View (C2178)
G05169323Courtesy of FORD MOTOR CO.
