Front Suspension System: Spring: Notes

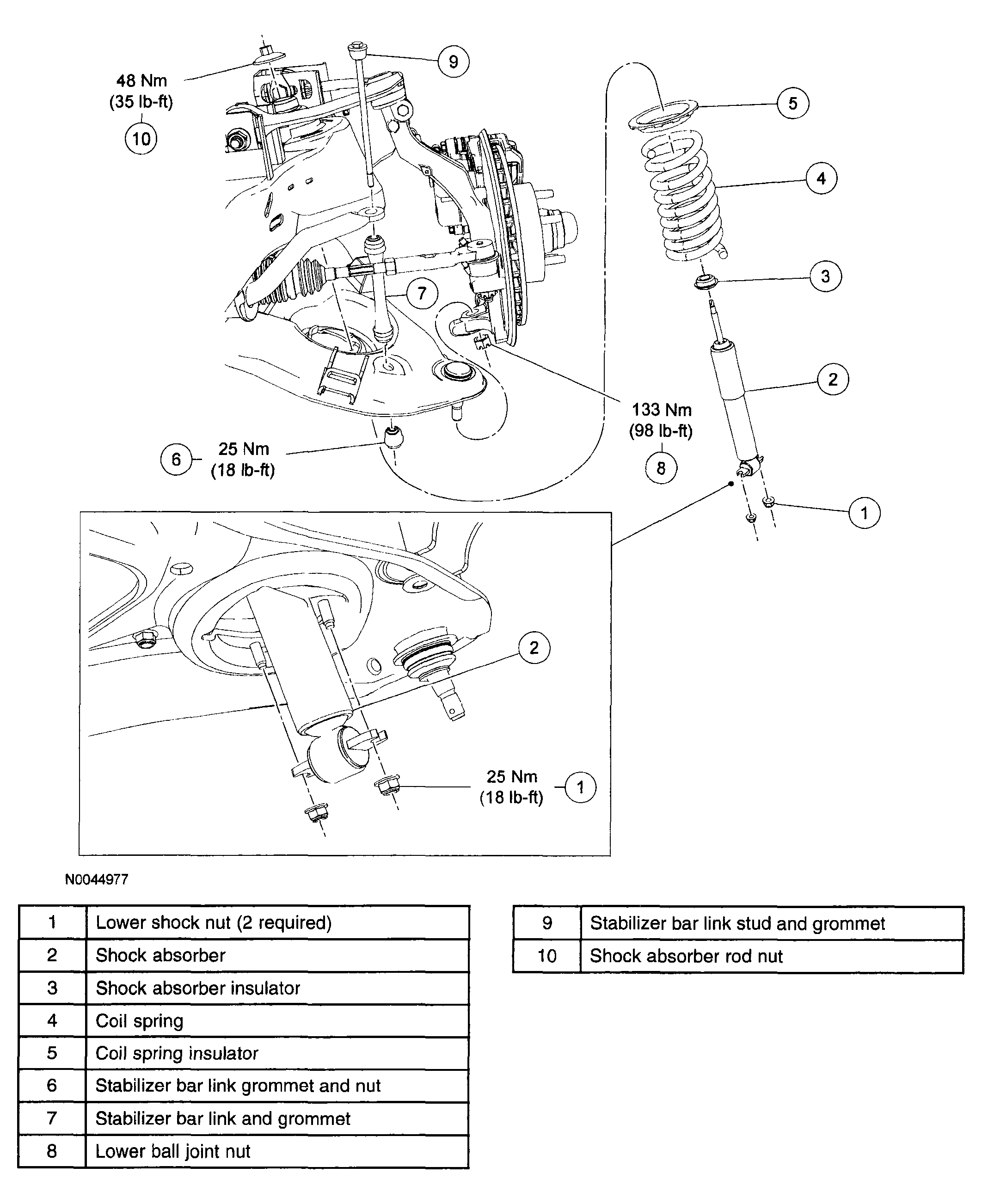

Fig 1: Front Suspension Replacement Components (Spring) With Torque Specifications
G04308592Courtesy of MAZDA MOTORS CORP.
