Upper Arm: Notes

NOTE:
  • Coil spring suspension shown, torsion bar suspension similar.

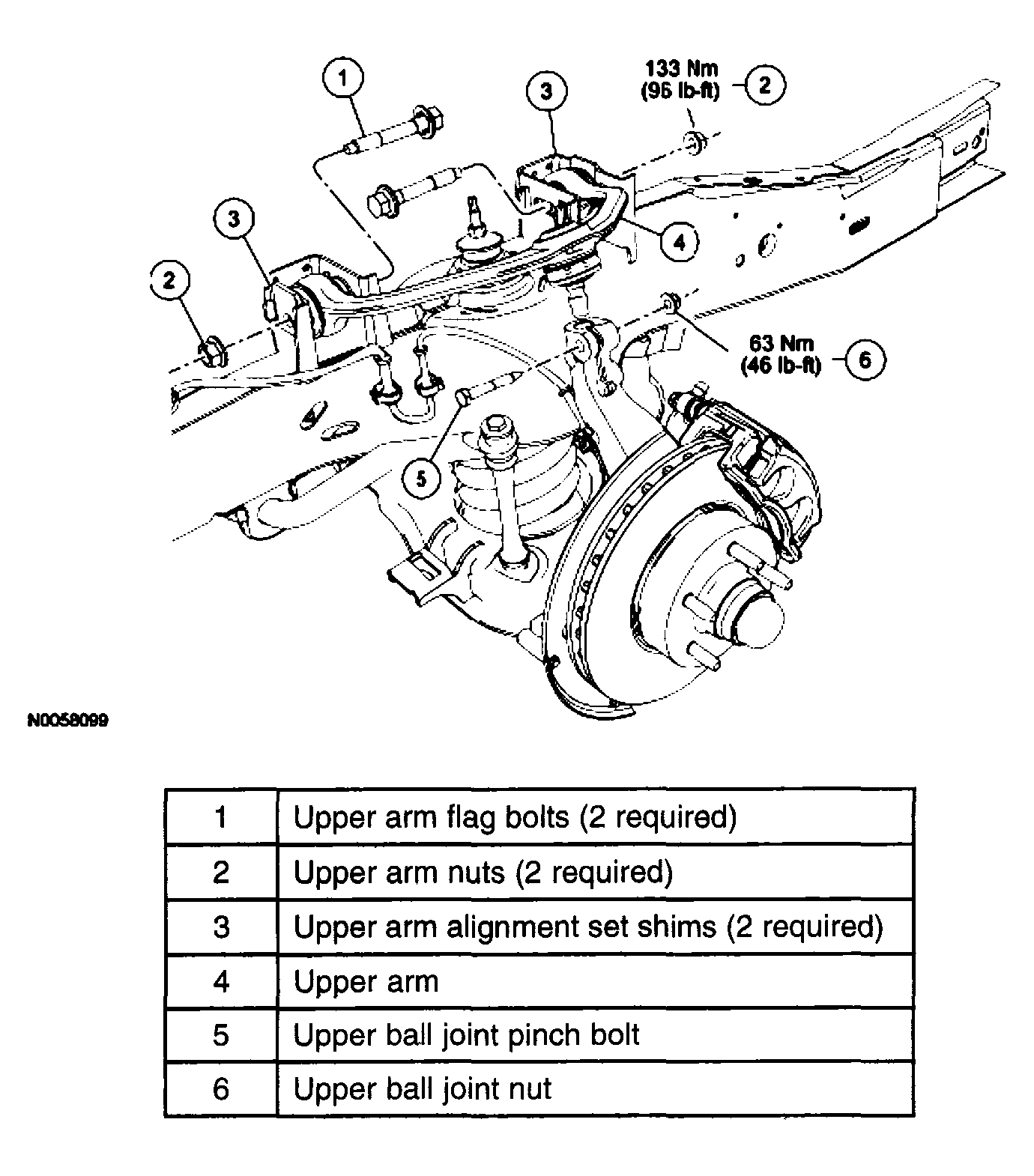

Fig 1: Upper Arm Replacement Components With Torque Specifications
G04308612Courtesy of MAZDA MOTORS CORP.
