Wheel Spindle: Notes

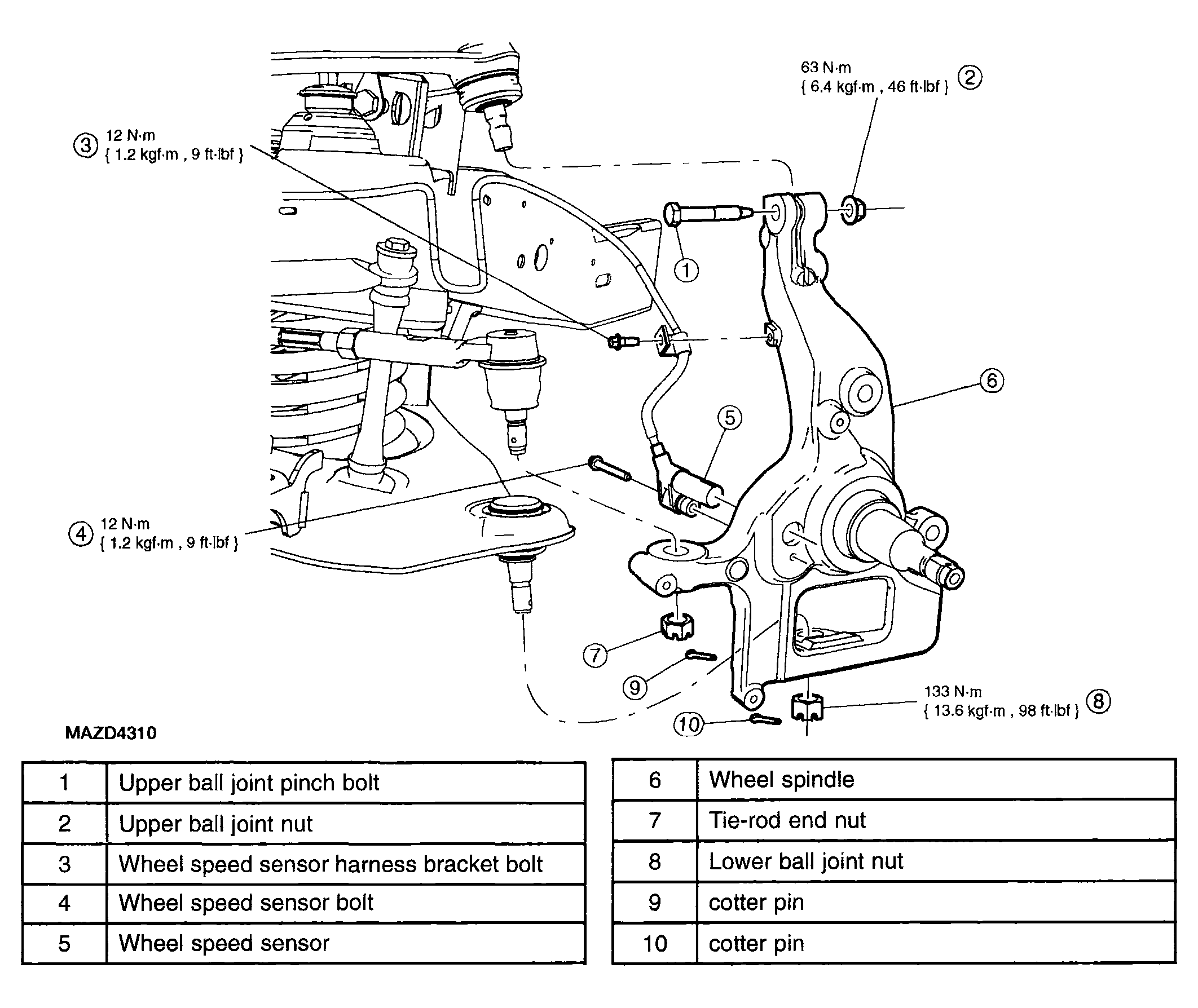

Fig 1: Wheel Spindle Replacement Components With Torque Specifications
G04308618Courtesy of MAZDA MOTORS CORP.
