Crankshaft Position Sensor: Service and Repair

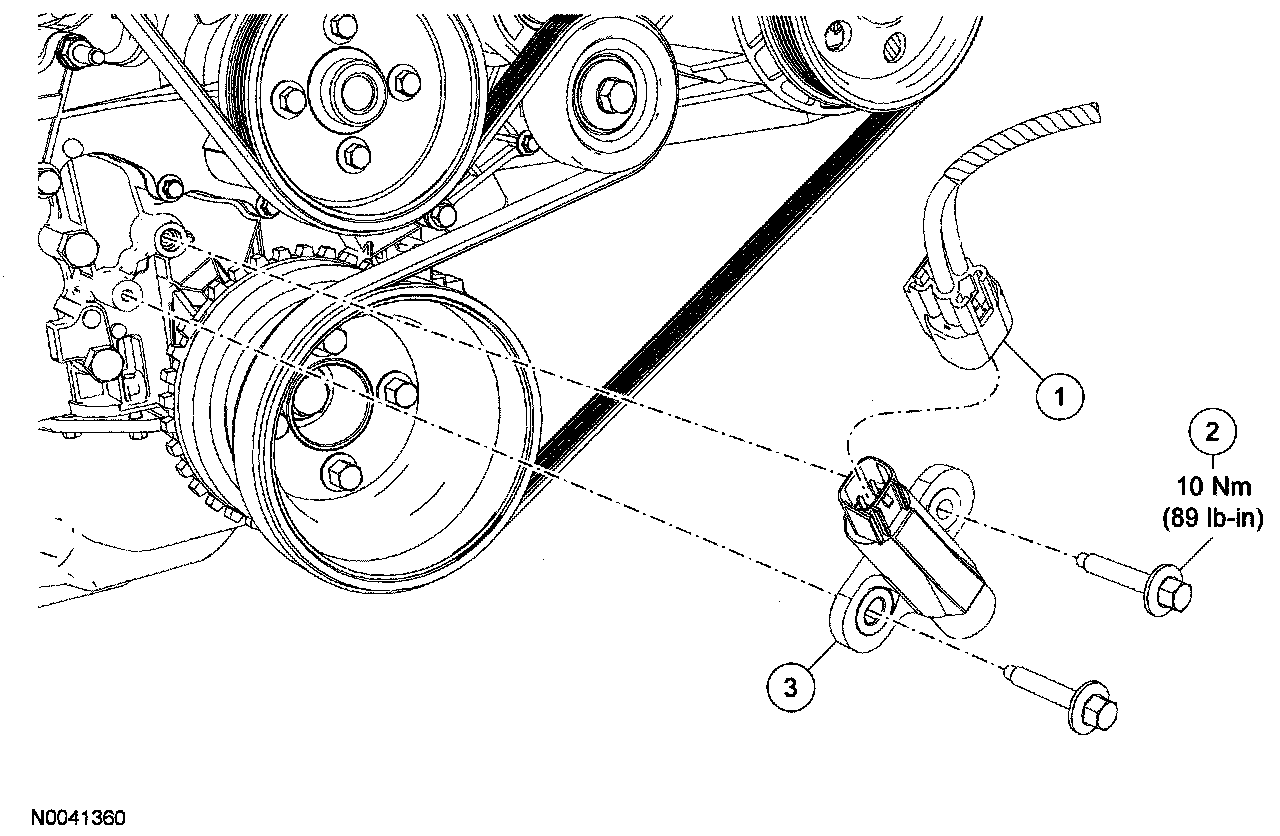

CRANKSHAFT POSITION (CKP) SENSOR REMOVAL / INSTALLATION - 3.0L








Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING.




2. Disconnect the negative battery cable. See BATTERY DISCONNECT.

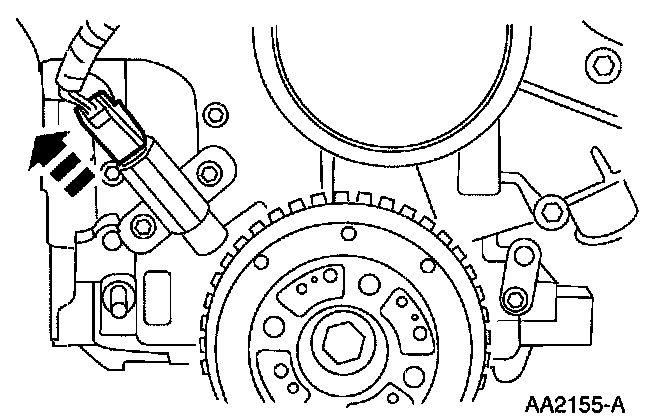

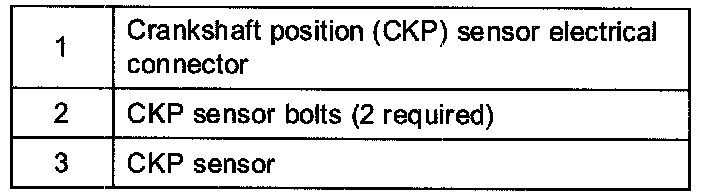

3. Disconnect the crankshaft position (CKP) sensor electrical connector.

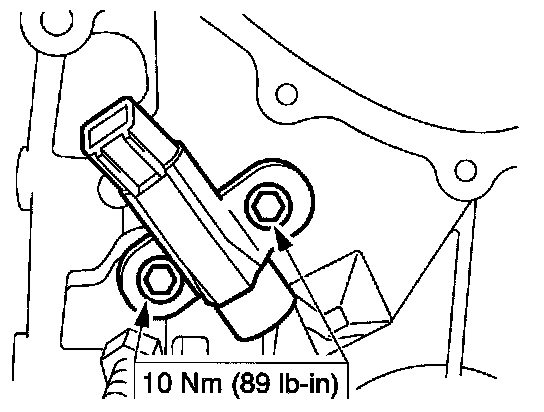

4. Remove the bolts and the CKP sensor.
5. To install, reverse the removal procedure.
