Refrigerant Lines Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery.
  2. Discharge the refrigerant from the system. (See REFRIGERANT CHARGING .)
  3. Remove the reservoir. (AJ-VE)
  4. Remove the washer tank. (AJ-VE) (See WASHER TANK REMOVAL/INSTALLATION [SEDAN] .) (See WASHER TANK REMOVAL/INSTALLATION [5-DOOR, SPORT WAGON] .)
  5. Remove the charcoal canister.
  6. Remove the under cover.
    CAUTION:
    • If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.
  7. Remove in the order indicated in the table. Do not allow compressor oil to spill.

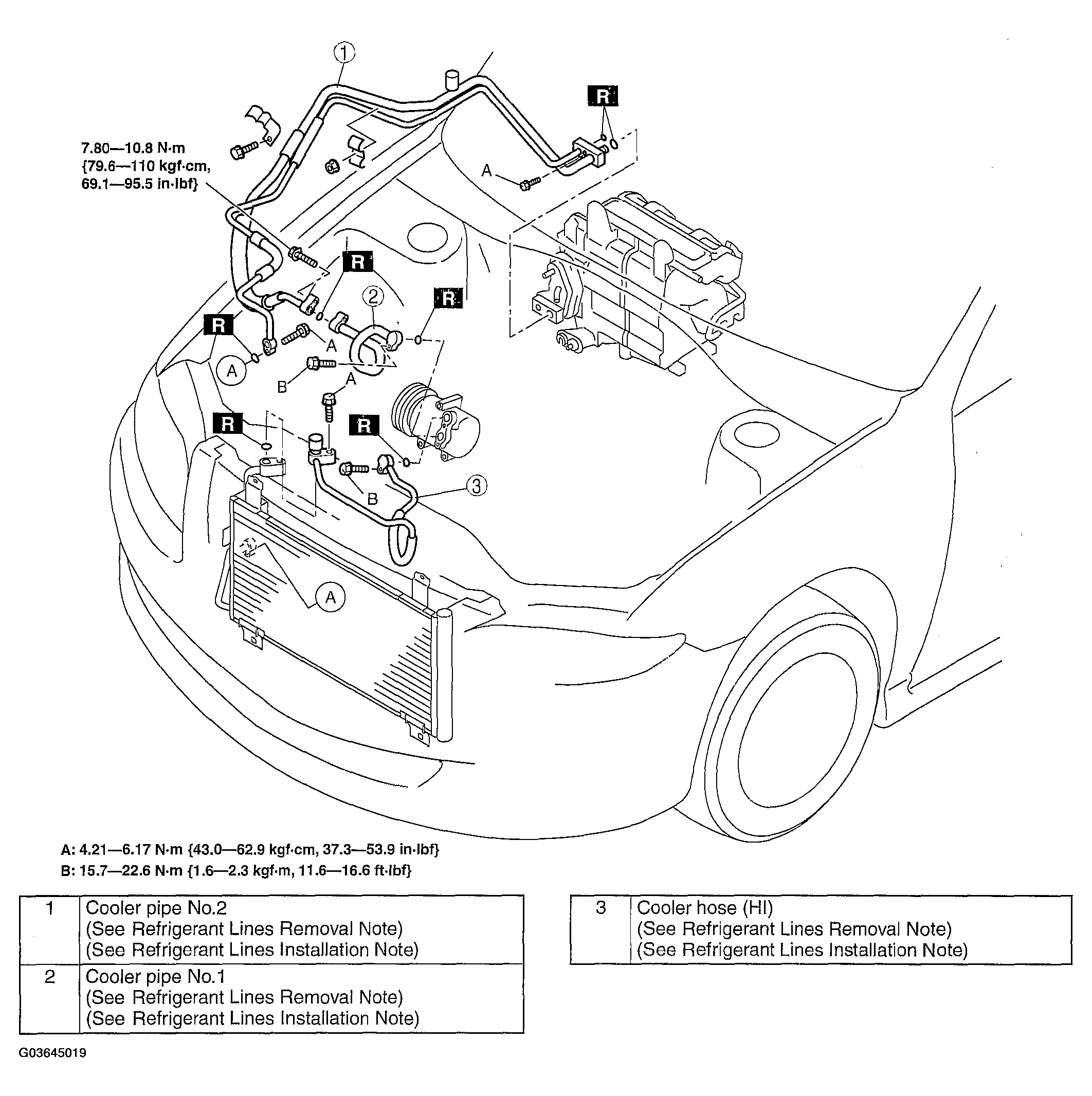

    Fig 1: Removing/Installing Refrigerant Lines (Torque Specs)
    G03645019Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
  9. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
