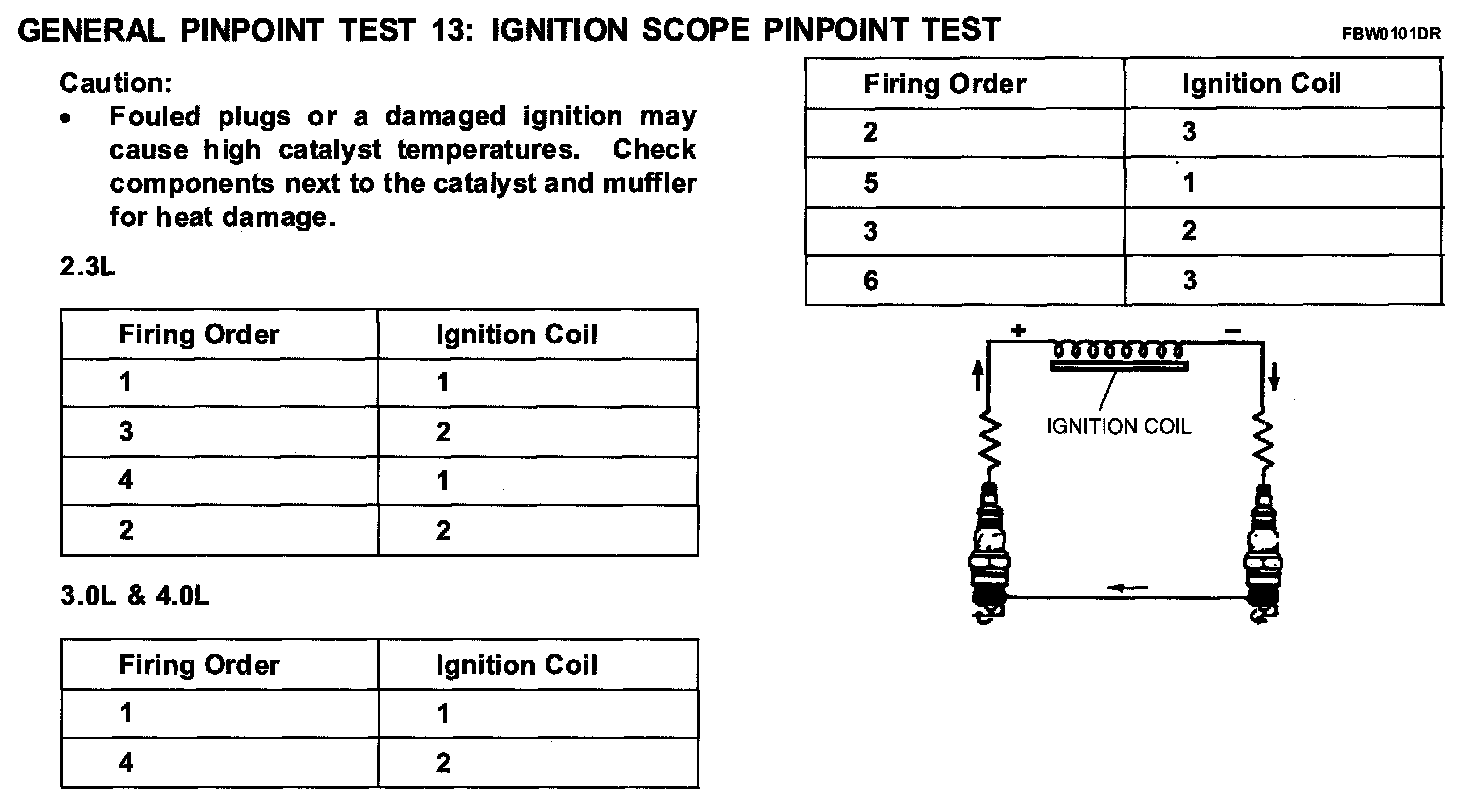

Pinpoint Test 13: Ignition Scope Pinpoint Test

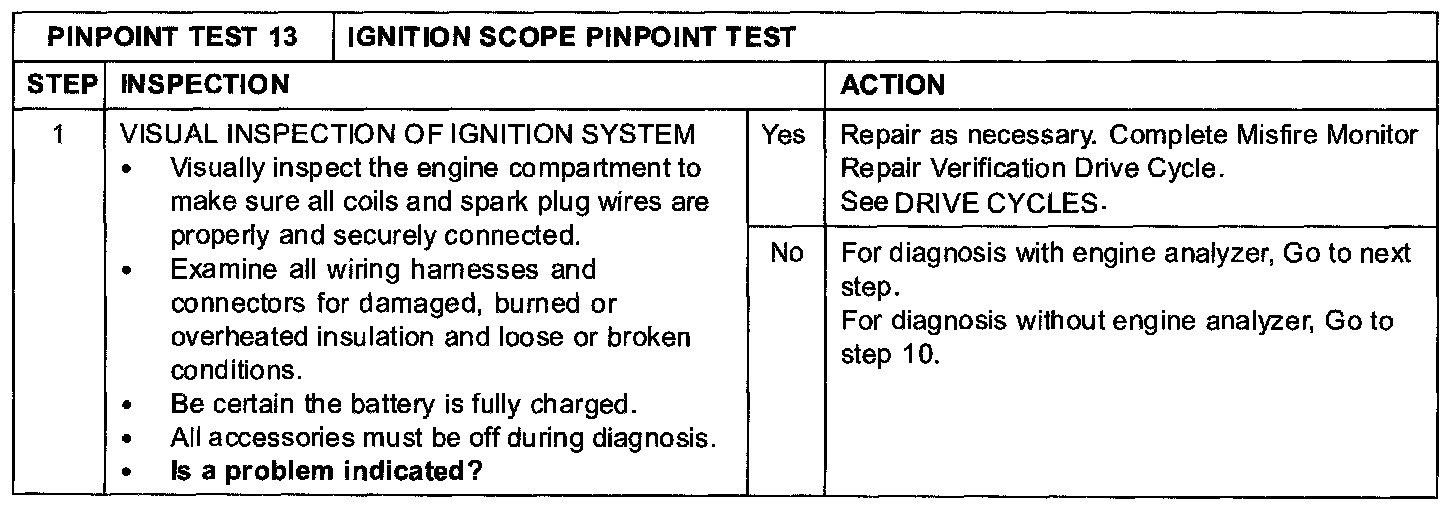

Step 1:

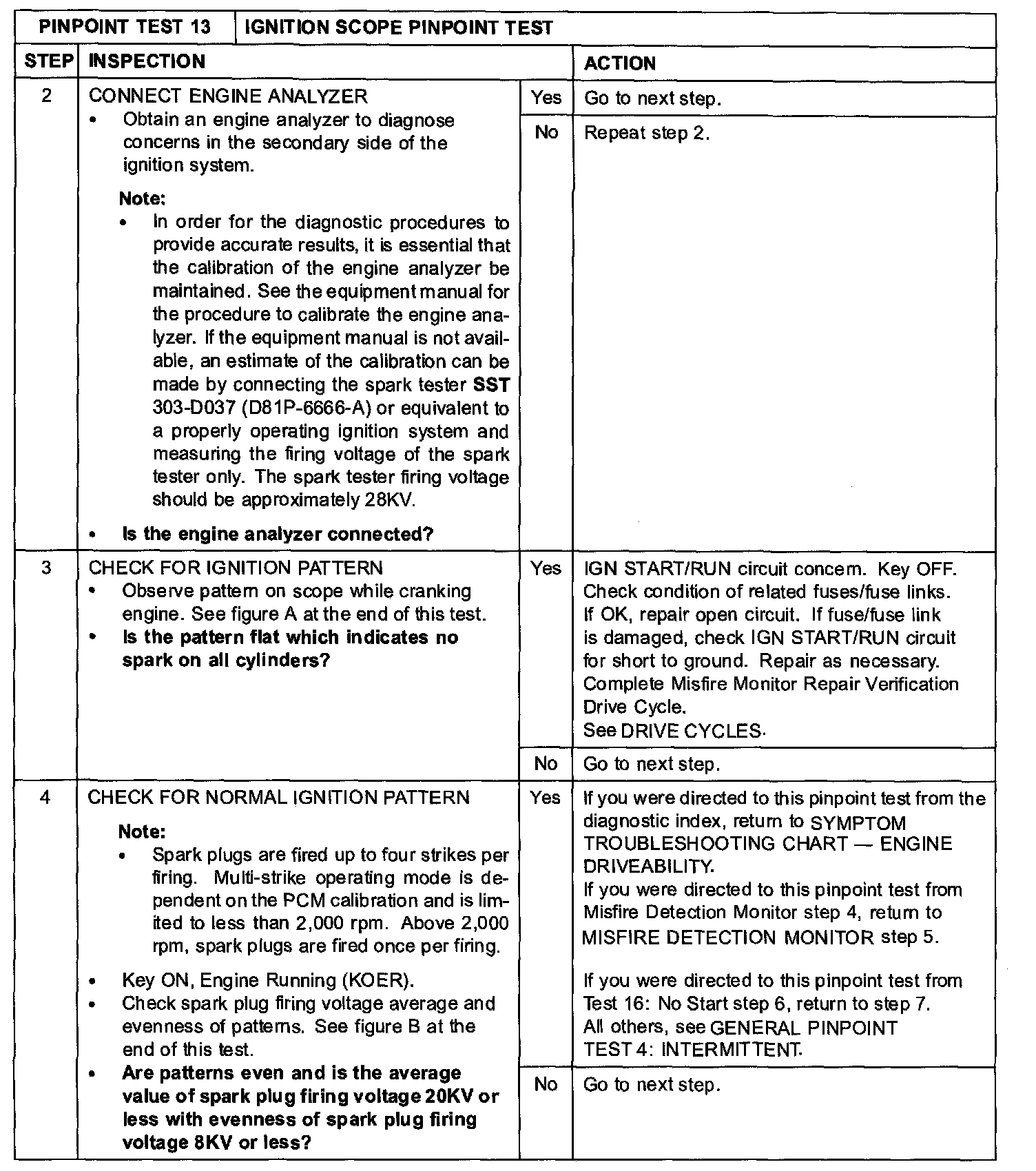

Step 2-Step 4:

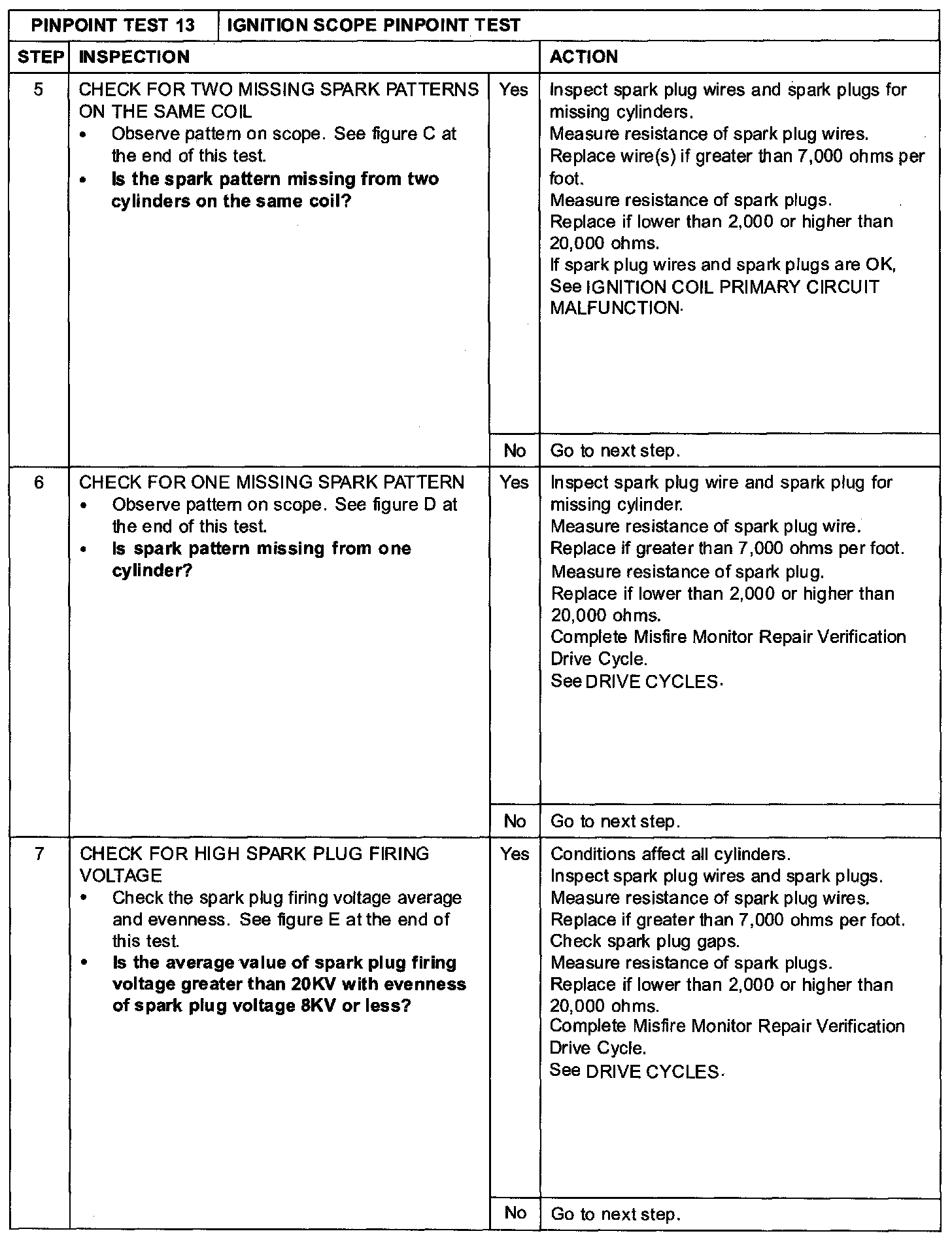

Step 5-Step 7:

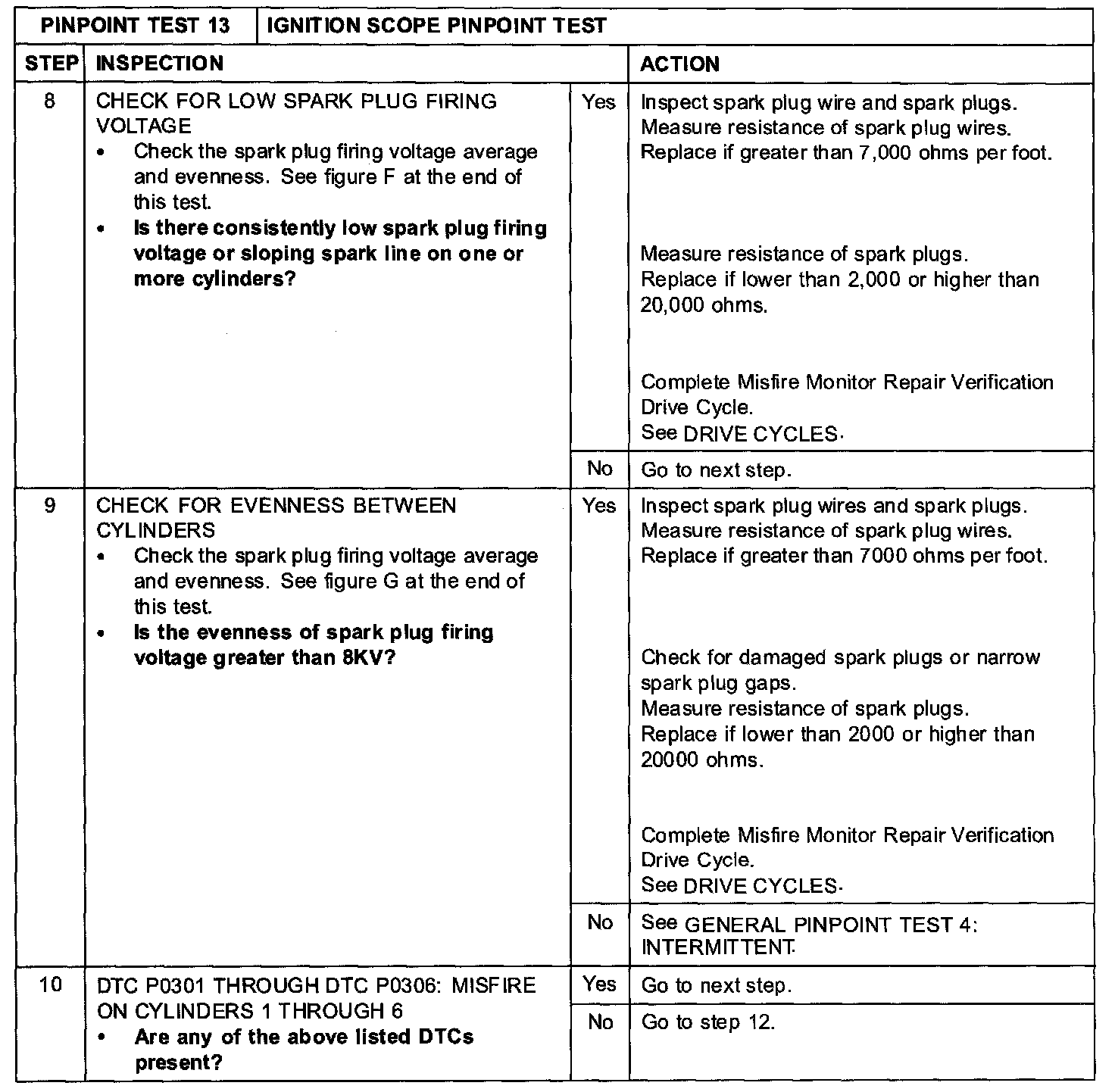

Step 8-Step 10:

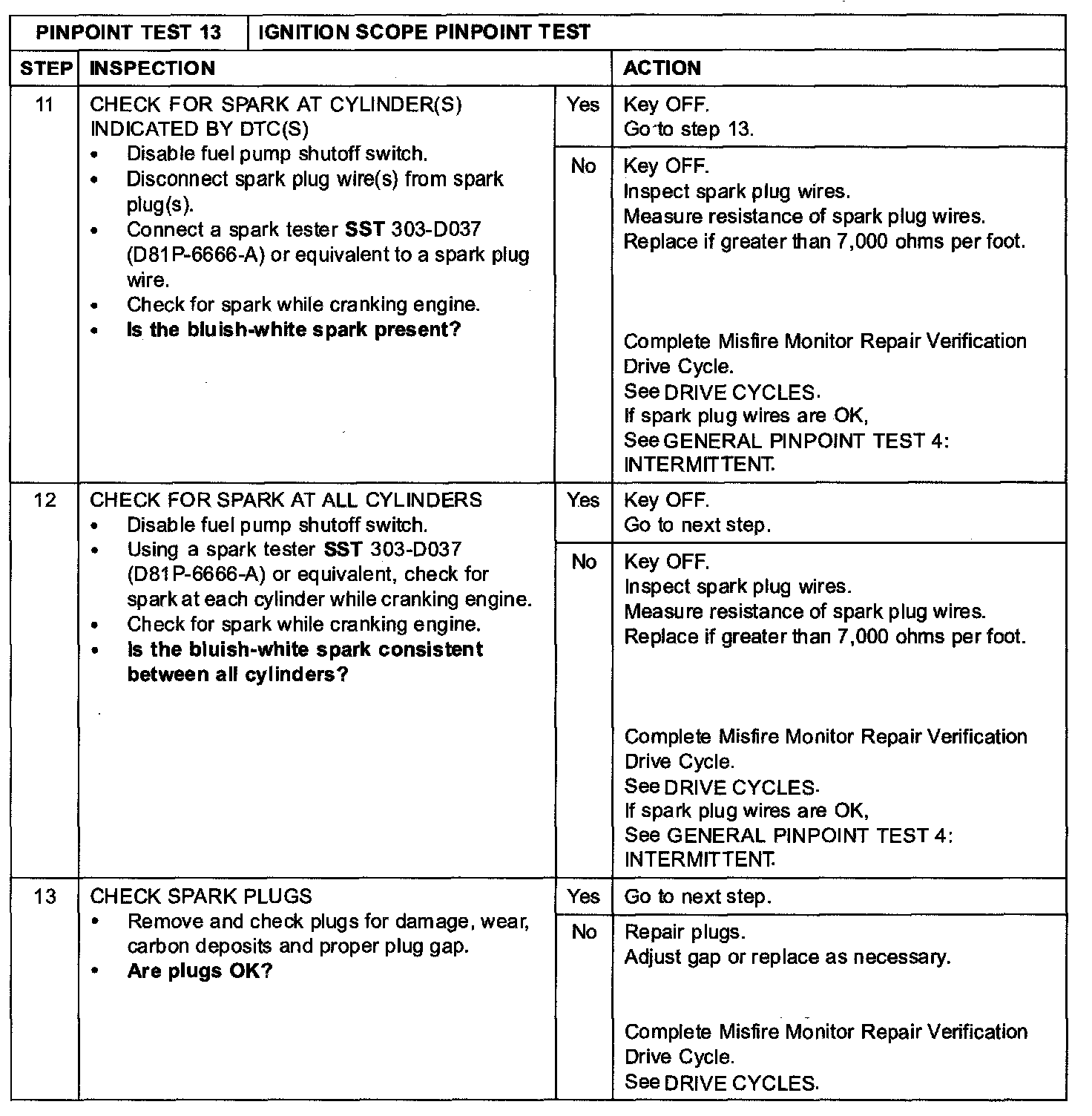

Step 11-Step 13:

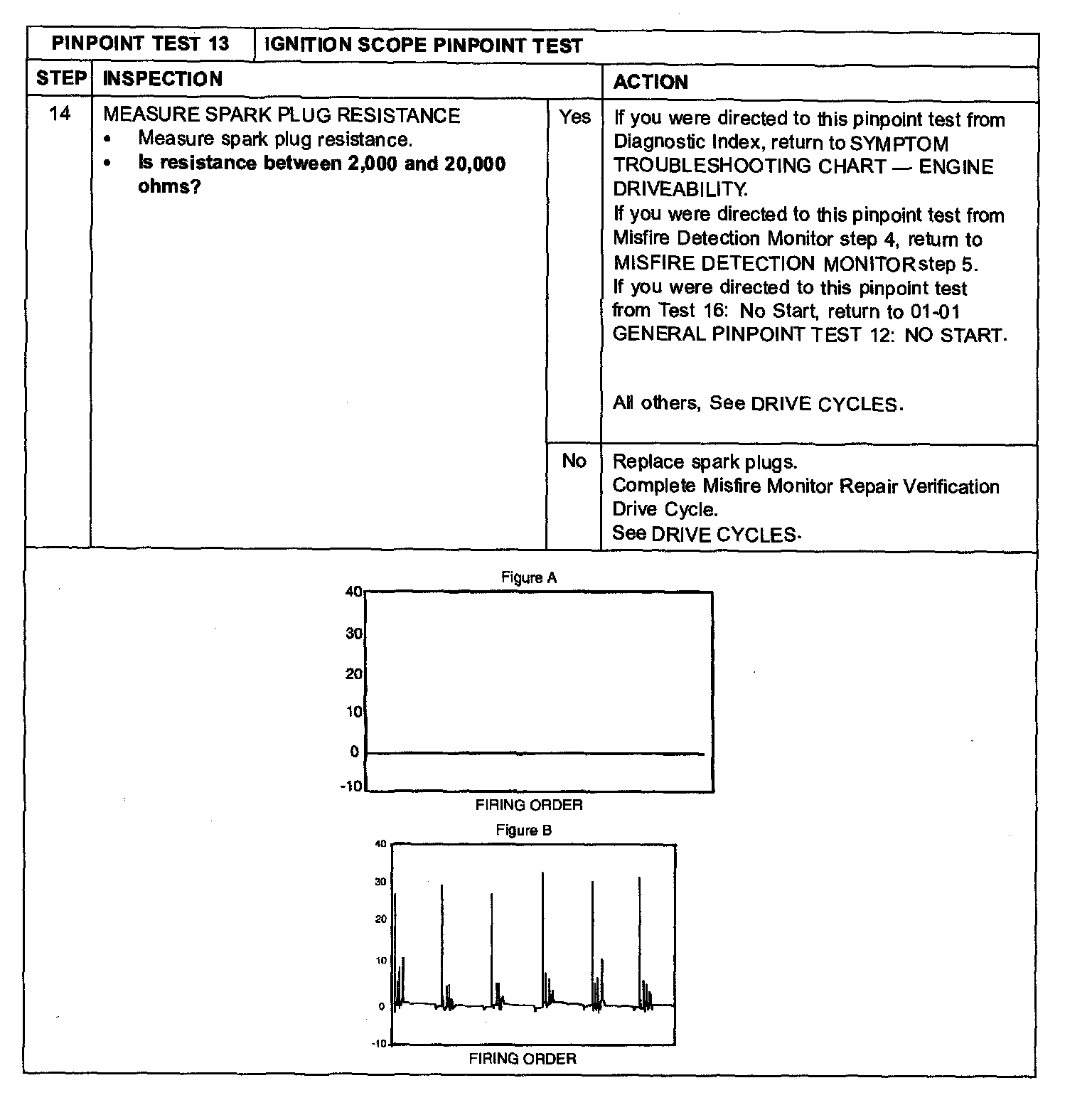

Step 14:
