Brakes and Traction Control: Specifications

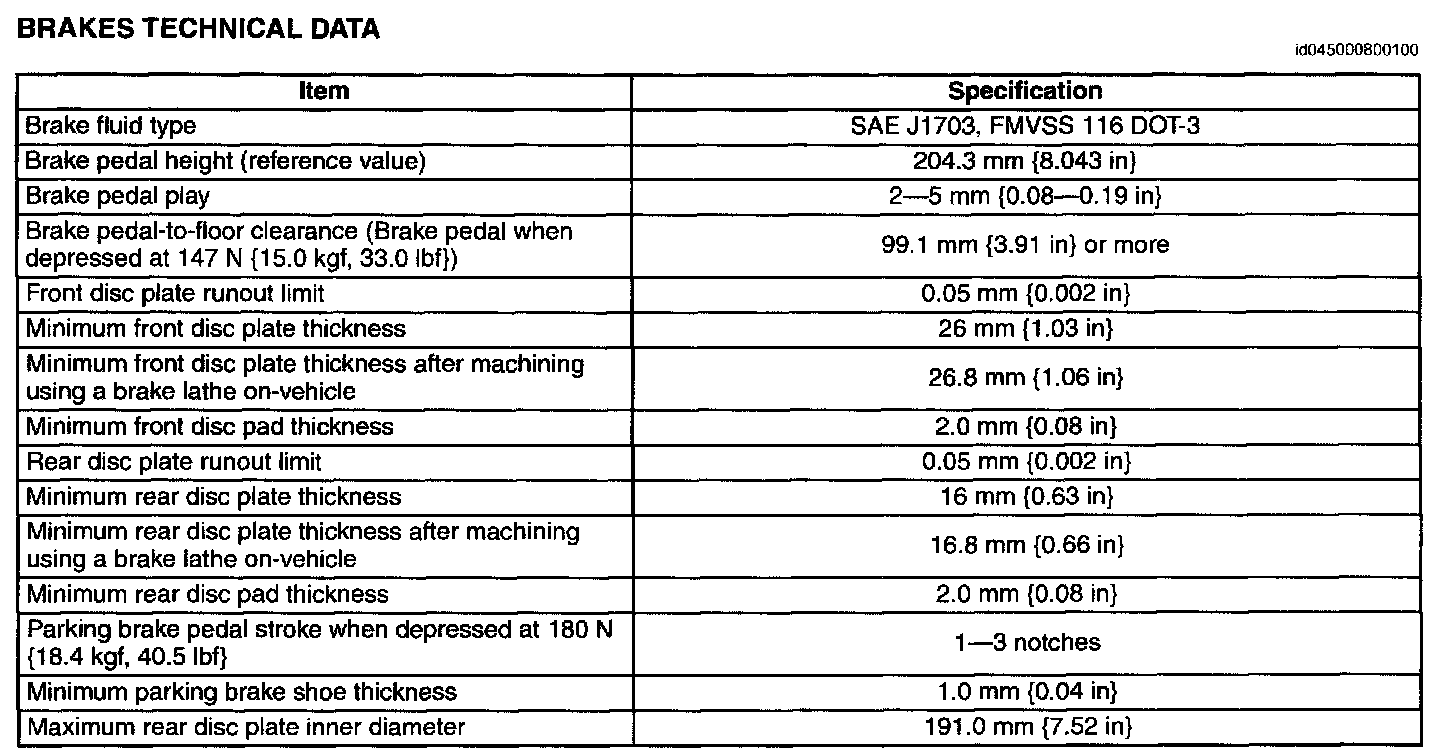

BRAKES TECHNICAL DATA

Brakes Technical Data:




Master Cylinder Fluid Pressure:




Master Cylinder Fluid Pressure:
