Climate Control Unit Installation [Manual Air Conditioner]

CLIMATE CONTROL UNIT INSTALLATION [MANUAL AIR CONDITIONER]

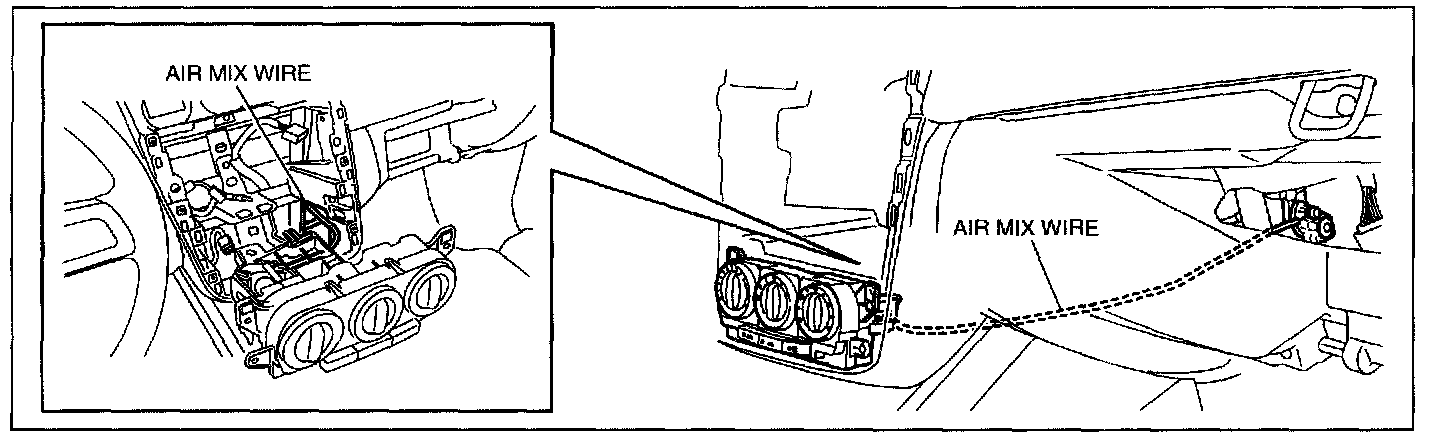

1. Pass air mix wire through the following routes then connect to A/C unit. (Manual air conditioner)
2. Install the following parts:
1 Climate control unit to the dashboard.
2 Audio unit
3 Center panel
4 Lower panel
5 Console

3 Adjust the air mix wire.
4 Install the globe compartment.
