Monitoring System And Control System Device Relationship Chart

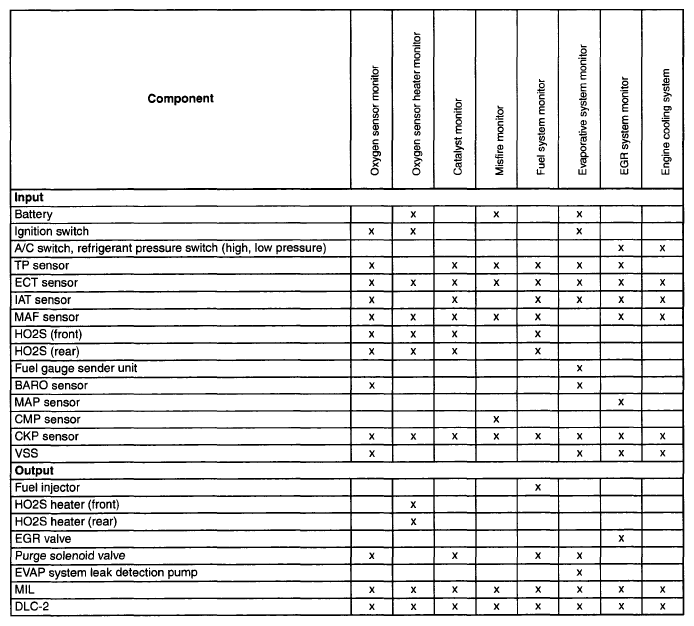

Fig 1: Monitoring System And Control System Device Relationship Chart [L3 With TC]
G04859340Courtesy of MAZDA MOTORS CORP.
