Rear Seat Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

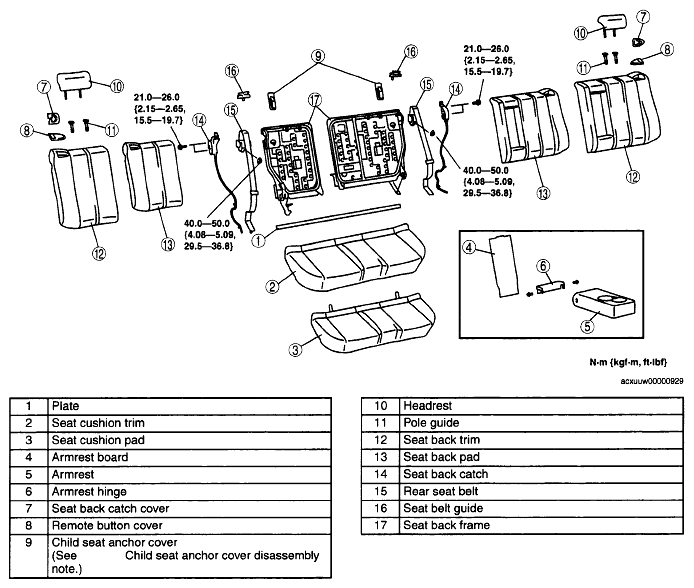

    Fig 1: Exploded View Of Rear Seat Components With Torque Specifications
    G04861087Courtesy of MAZDA MOTORS CORP.
