Power Window Subswitch (Passenger'side)

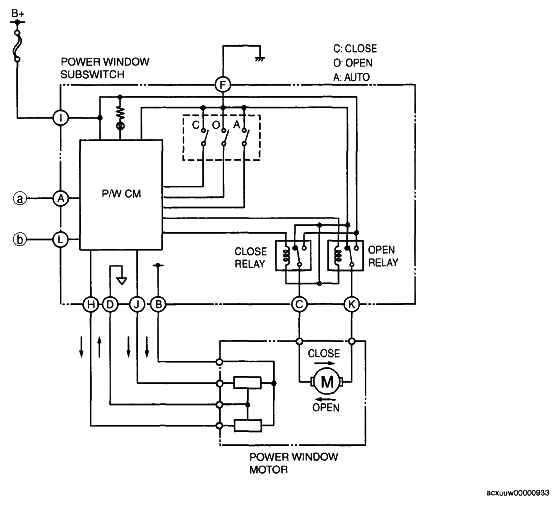

Fig 1: Power Window Subswitch Wiring Diagram (Passenger Side)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
