Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

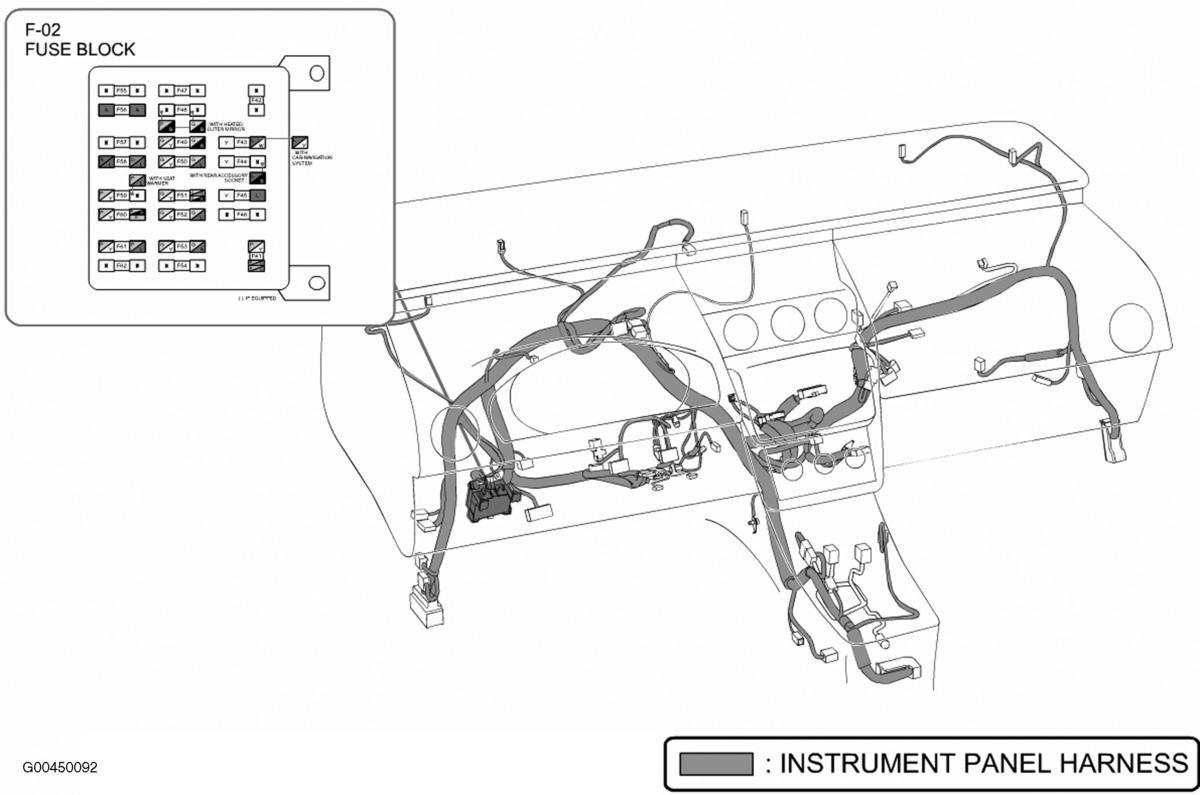

Fuse Block Under left end of dash. See Figure.

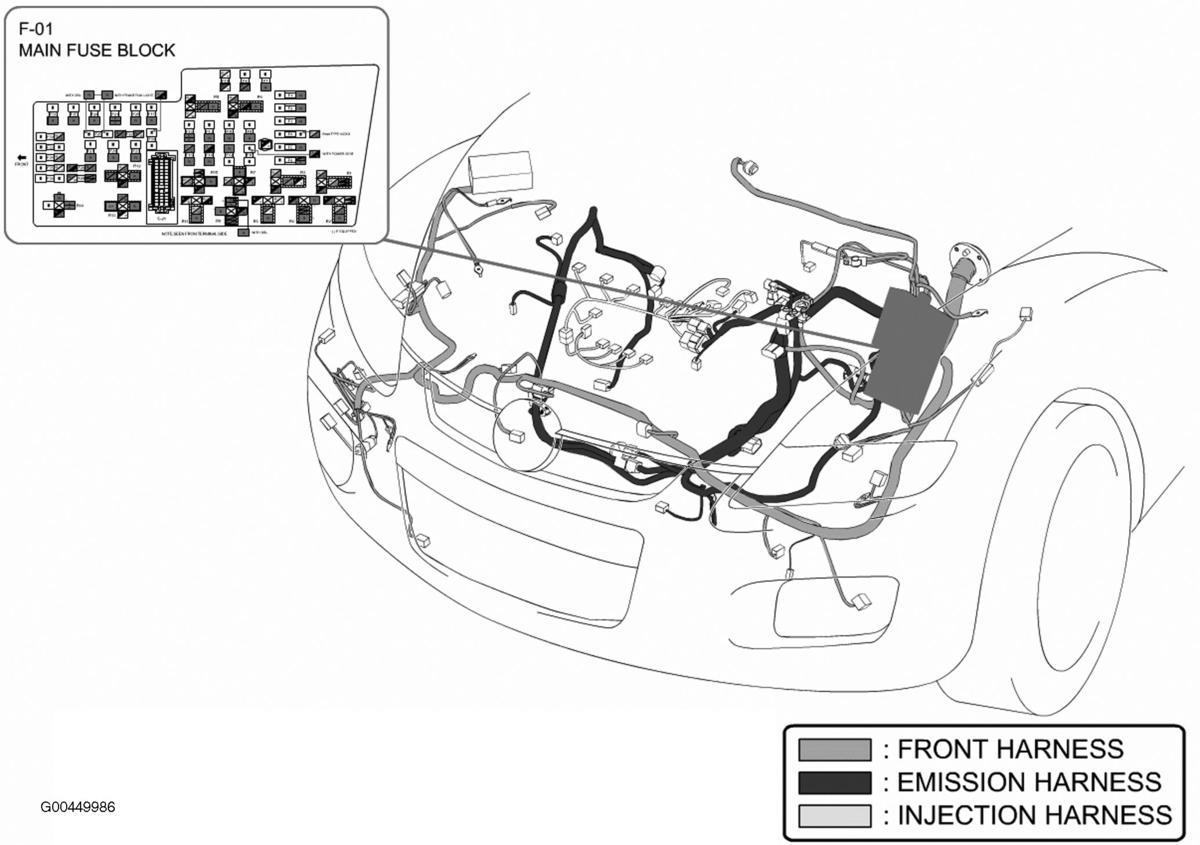

Main Fuse Block Left rear of engine compartment. See Figure.

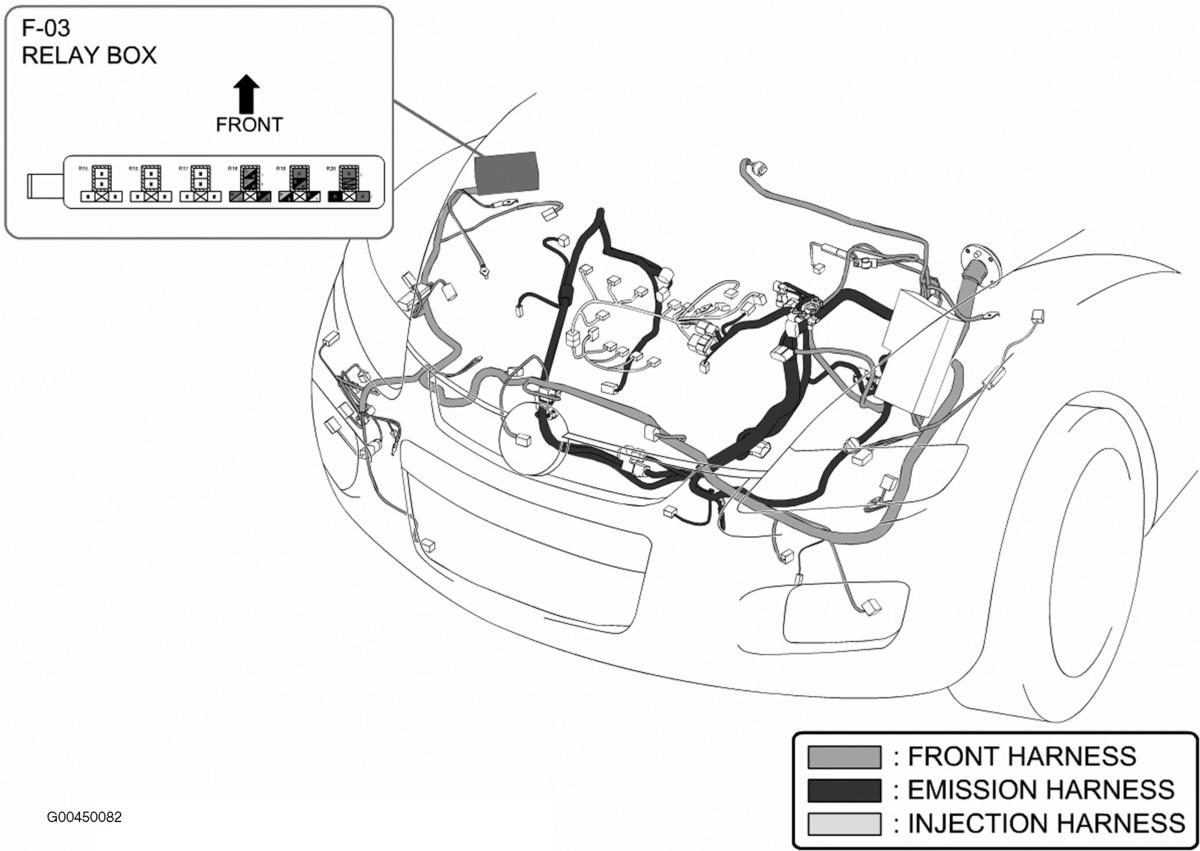

Relay Box Right side of engine compartment. See Figure.
