Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION ).
  2. Inspect the following wiring harnesses for an open or short circuit (continuity check).
    Fig 1: Identifying Fuel Injector Wiring Harness Side Connector Terminals
    G04859680Courtesy of MAZDA MOTORS CORP.

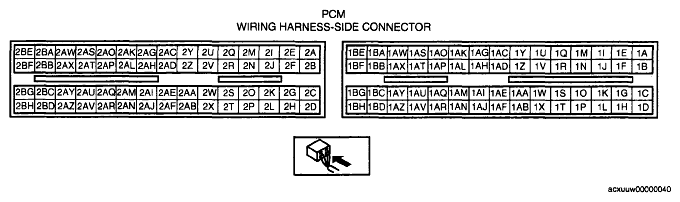

    Fig 2: Identifying PCM Wiring Harness Side Connector Terminals
    G04859681Courtesy of MAZDA MOTORS CORP.
